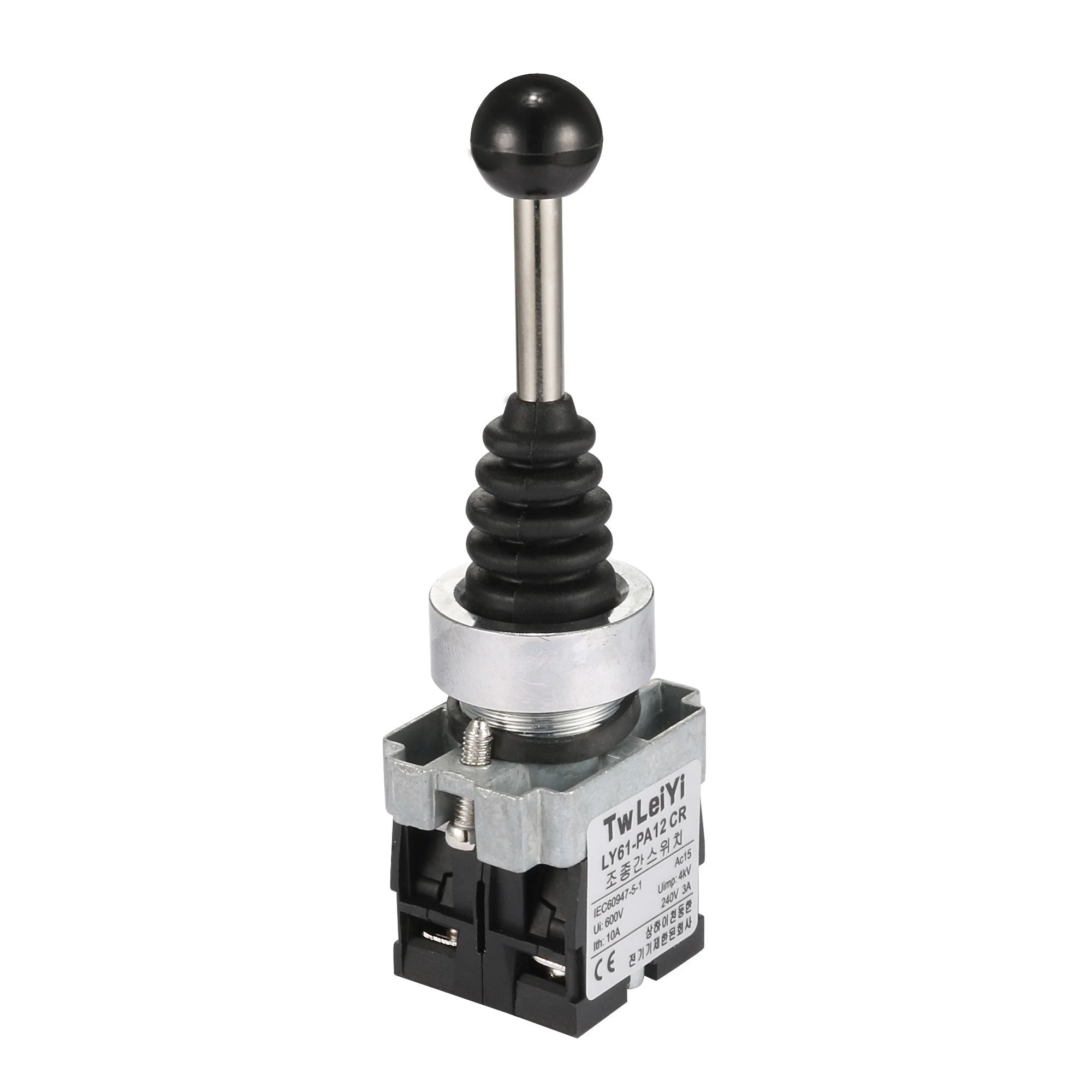

About this item
- Operate at 2 directions, with the 30 degrees declination of operation handle
- Latching type operation with 1 normally open contact per direction
- Insulation Voltage (Ui): 600V; Heating Current (Ith): 10A
- Simply drill an 22mm (7/8″) hole and secure it with the screw ring
- Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Description:
-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.
– controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.
-They are ideal for raising, lowering and triggering movements to the right and left.
-This 22mm selector switch is modularly designed to make assembly.
-Rubber bushing is oil-resistant and dust-preventive.
-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.
Specification:
Insulation Voltage (Ui): 600V
Heating Current (Ith): 10A
Action Type: Latching
Positions: 2
Contacts Type: 1 NO Contact Per Direction
Terminals Type: Screw Clamps Terminals
Panel Mounting Diameter: 22mm / 7/8″
Overall Size: 119 x 40 x 30mm / 4.68 x 1.57″ x 1.18″ (L*W*H)
Joystick Length: 77mm / 3.03″
