About this item
- Operate at 4 directions, with the 30 degrees declination of operation handle
- Momentary type operation with 1 normally open contact per direction
- Rated Voltage: 150V / 250V / 600V; Rated Current: 15A / 10A / 5A
- Simply drill an 30mm (1-17/94″) hole and secure it with the screw ring
- Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Description:
-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.
– controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.
-They are ideal for raising, lowering and triggering movements to the right and left.
-This 30mm selector switch is modularly designed to make assembly.
-Rubber bushing is oil-resistant and dust-preventive.
-This selector switch is modularly designed to make assembly.
-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.
Specification:

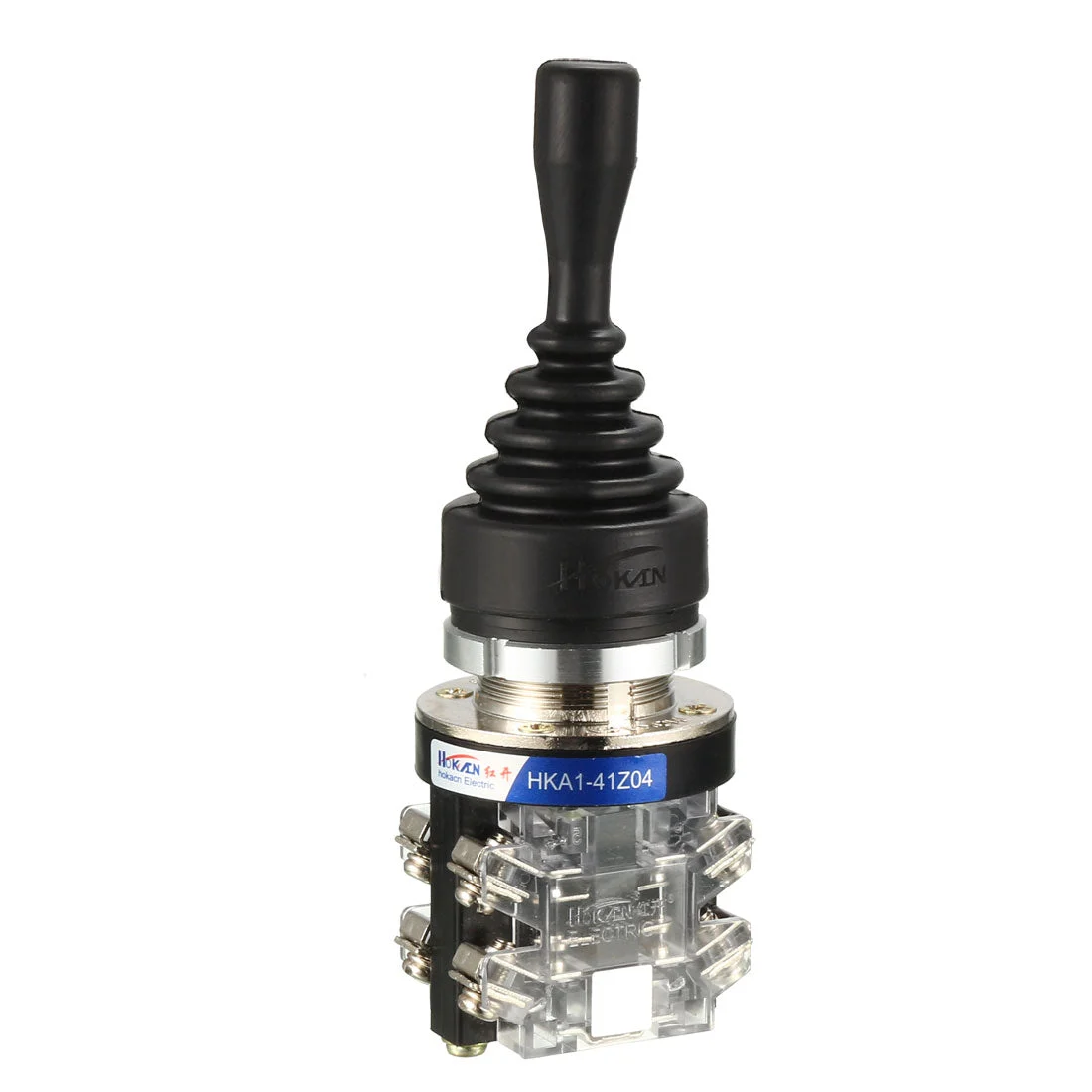

Model: HKA1-41Z04
Rated Voltage: 150V / 250V / 600V
Rated Current: 15A / 10A / 5A
Action Type: Momentary
Positions: 4
Contacts Type: 1 NO Contact Per Direction
Terminals Type: Screw Clamps Terminals
Panel Mounting Diameter: 30mm / 1-17/94″
Overall Size: 145 x 49mm / 5.71″ x 1.93″ (L*D)
Joystick Length: 78mm / 3.07″
