About this item
- Operate at 4 directions, with the 30 degrees of operation handle
- Momentary type operation with 1 normally open contact per direction
- Rated Voltage: 240V / 600V; Rated Current: 3A / 10A; Impulse Withstand Voltage: 4kV
- Simply drill an 22mm (7/8″) hole and secure it with the screw ring
- Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Description:

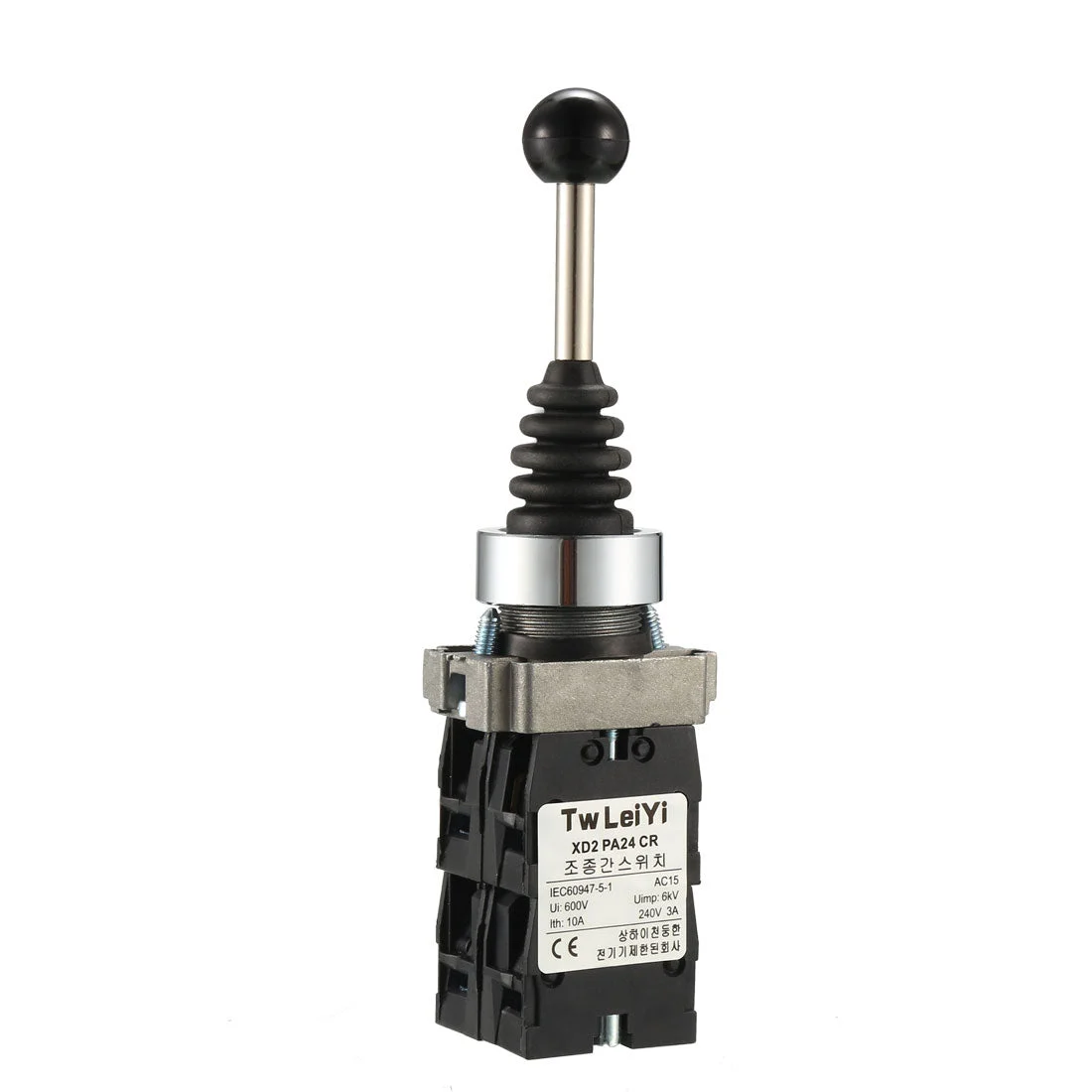

-Joystick switches are manually actuated controller for installation in control and front panels as well as in portable control equipment.
– controllers are used wherever motion to the actuation direction is controlled by hand.
-They are for raising, lowering, and triggering movements to the right and left.
-This 22mm selector switch is designed to make the assembly.
-Rubber bushing is oil-resistant and dust-preventive.
-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for studio technology.
Specification:
Rated Voltage: 240V / 600V
Rated Current: 3A / 10A
Insulation Voltage (Ui): 600V
Heating Current (Ith): 10A
Impulse Withstand Voltage: 4kV
Action Type: Momentary
Positions: 4
Contacts Type: 1 NO Contact Per Direction
Terminals Type: Screw Clamps Terminals
Panel Mounting Diameter: 22mm / 7/8″
Overall Size: 144 x 40 x 30mm / 4.72″ x 1.57″ x 1.18″ (L*W*H)
Joystick Length: 76mm / 2.99″
