About this item

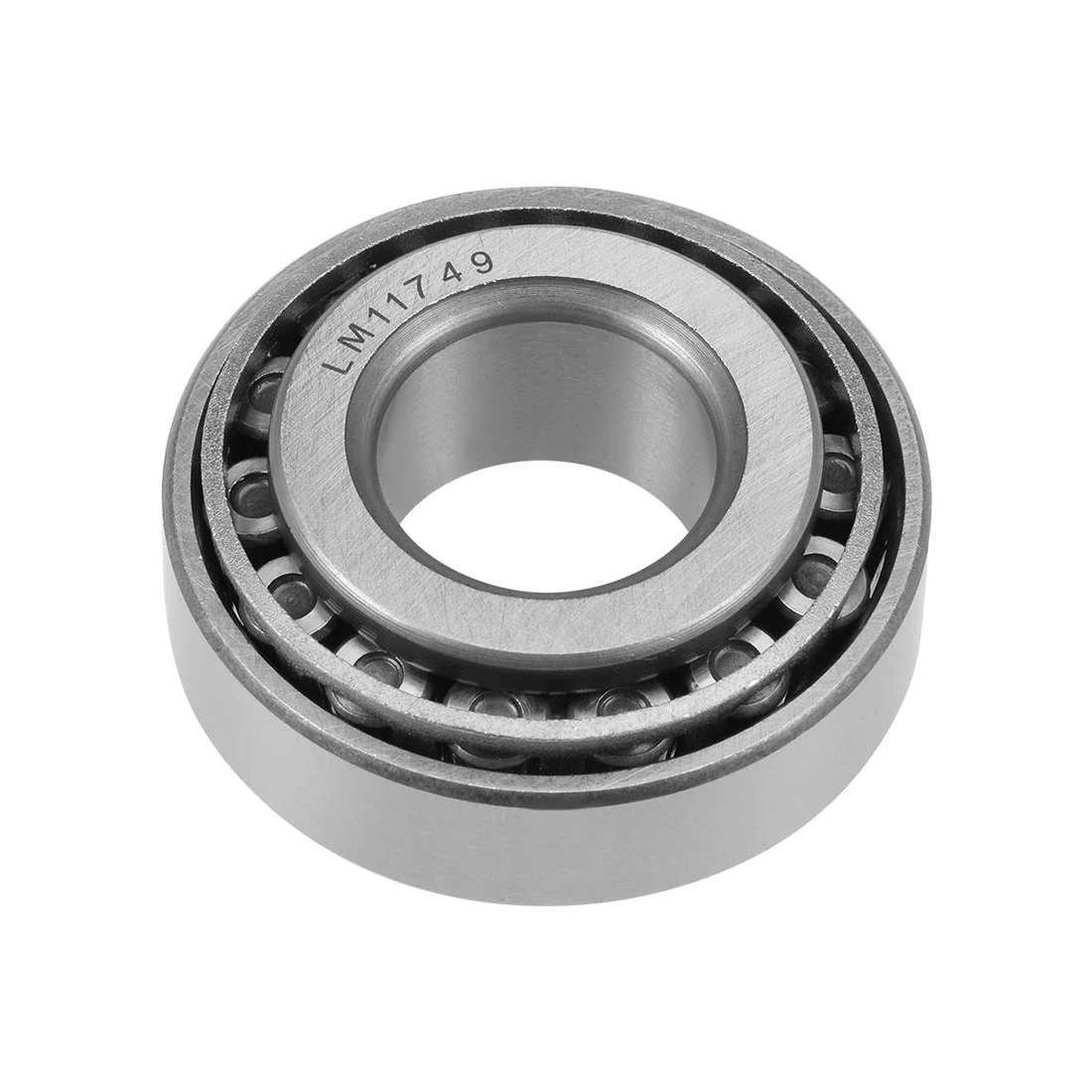

- Model: LM11749/LM11710 (Bore: 17.463mm / 0.6875″, Outer Diameter: 39.878mm / 1.57″, Width: 14.605mm / 0.575″)
- Single row tapered roller bearings must be used either with a second bearing or as a matched pair
- Components are separable and interchangeable that easy for maintenance
- Features low friction and low noise that provide operational reliability
- Static Load Rating of 23.4kN and Dynamic Load Rating of 29.4kN
Description:
- Single Row Tapered Roller Bearings are designed to accommodate combined loads.
- These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
- The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
- The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
- This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.
Specification:
Cone Model: LM11749
Cup Model: LM11710
Material: Chrome Steel
Bore Diameter: 17.463mm / 0.6875″
Outside Diameter: 39.878mm / 1.57″
Total Thickness (T): 14.605mm / 0.575″
Dynamic Load Rating (Cr): 29400N
Static Load Rating (Cor): 23400N
