About this item
- 【Wide Application】This mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , panel DIY control, lights, water dispenser, generator, coffee pot, speaker,TV, and breadboard DIY power control.
- 【Product Specification】Control Type:SPST;Terminals: 2；Position: 2 ON/OFF；Rating Voltage: AC 250V/6A 125V/10A；Light Voltage: NO light include；Total Size ( size measuring do not include the Waterproof case):21*15*24mm（L*W*H)；Mounting Size: 18.5*11.5mm(L*W);Action Type: Latching;Color:White
- 【Advantage】Flexible keys, high sensitivity, simple structure, side snap design, convenient and firm installation; The surface is insulated and flame retardant, with strong heat resistance, oxidation resistance and corrosion resistance.
- 【Quick-recognized Codes】Use the mark,”I – O “, to represent the 2 position of the switch. It is easy to recognize the positions in operation.
- 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
Description:
1.Universal for all buses, boats, marine, trailers,kitchen appliance etc.
2.Rocker Switch, 2 terminals ON/OFF switch, , longer life for use.
3.Product soldering precautions:
Any incorrect soldering operation may result the pin in deformation and poor switch contact. Be sure to pay attention to the following points when wiring:
Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
Specification:

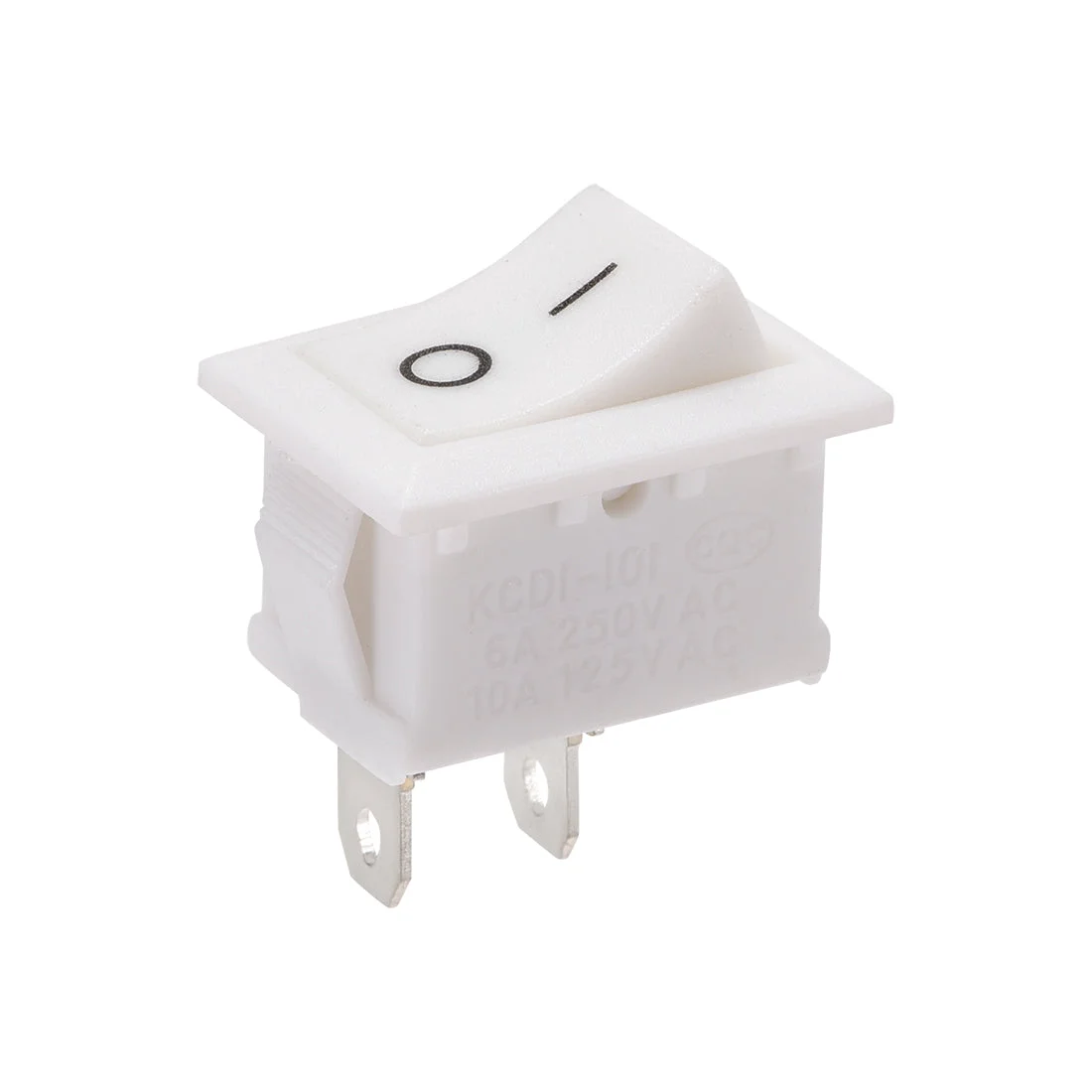

Product Name:Rocker Switch
Terminals: 2
Position: 2-ON/OFF
Rating Voltage: AC 250V/6A 125V/10A
Light Voltage: NO light include
Material: Plastic, Metal
Total Size:21*15*24mm(L*W*H)
Mounting Size: 18.5*11.5mm(L*W)
Action Type: Latching
Package Content :
1 x Rocker Switch
