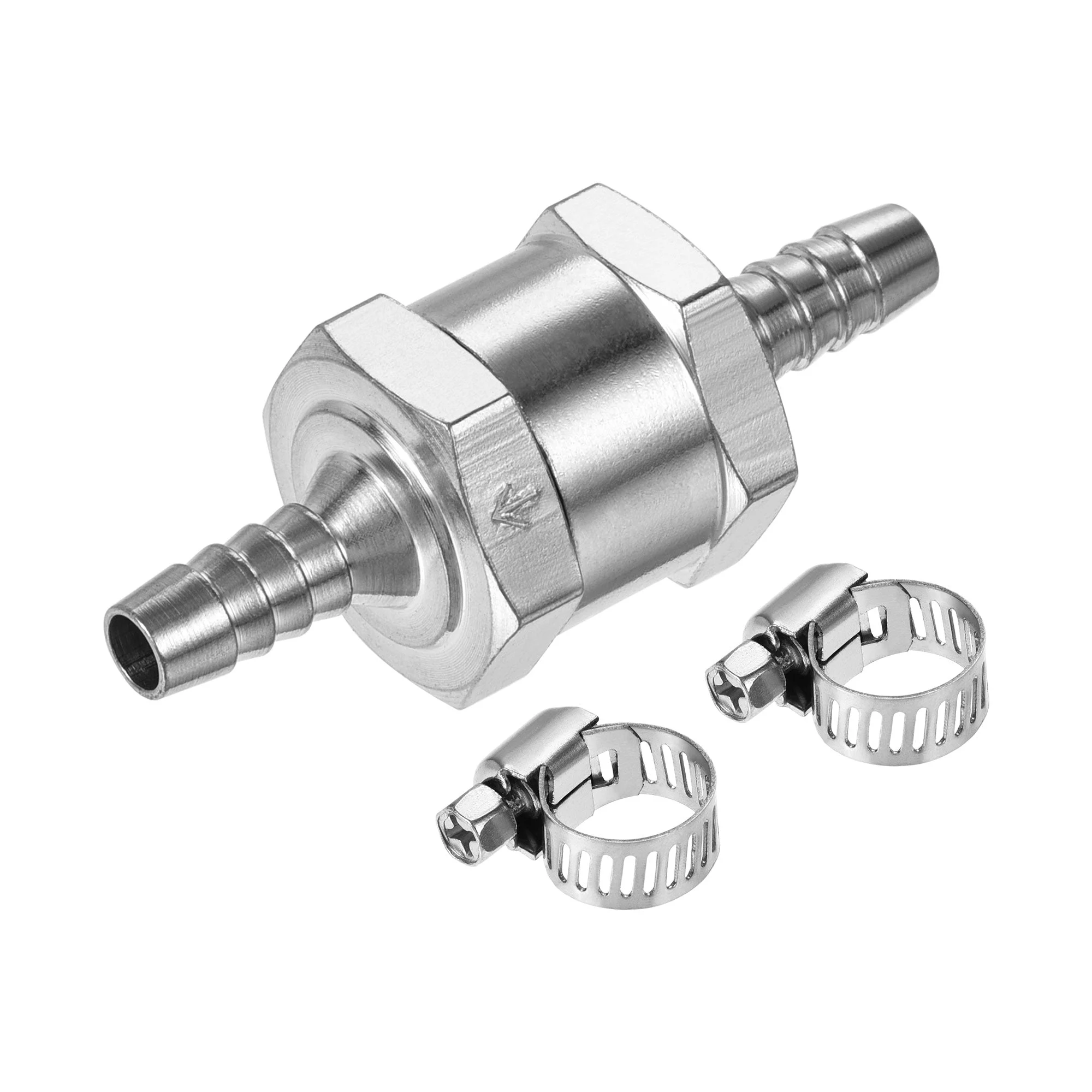

Non-Return One Way Check Valve with Hose Clamps, 7mm Barb OD, for Water Petrol Fuel Line

About this item

• [Size] – Fitting Size: 22×59.3mm / 0.87×2.34 Inch (Dia*L); Barb Inner Dia.: 5mm / 0.2 Inch; Barb Outer Dia.: 7mm / 0.28 Inch; Barb Length: 17.5mm / 0.69 Inch; Hose Clamp Size: 6mm to 12mm / 0.24inch to 0.47inch
• [One Way Non-Return] – Stop the water or fuel from returning back to the tank and keep it in the line
• [Material] – Aluminum alloy check valve and 304 stainless steel hose clamp have good rust & corrosion resistance
• [Barbed Fitting] – Barb on both sides of the fitting with hose clamps will ensure a good sealing and tight connection
• [Application] – Widely used on oil petrol fuel or water lines in the pipeline system

Features:
The main function of the check valve is to stop the fuel from returning back to the tank and keep it in the line.
Aluminum alloy check valve and 304 stainless steel hose clamp have good rust & corrosion resistance.
Barb on the fitting and hose clamps ensures a good sealing and tight connection on a flexible hose.
Widely used on oil petrol fuel or water lines in the pipeline system.
Specifications:
Color: Silver Tone
Material: Aluminum Alloy, 304 Stainless Steel
Overall Size: 22×59.3mm / 0.87×2.34 Inch (Dia*L)
Barb Inner Diameter: 5mm / 0.2 Inch
Barb Outer Diameter: 7mm / 0.28 Inch
Barb Length: 17.5mm / 0.69 Inch
Hose Clamp Size: 6mm to 12mm / 0.24inch to 0.47inch

Package Included:
1 x Barbed Check Valve
2 x Hose Clamps
