About this item
- 【UNIVERSAL DESIGN】- Product Name : Elbow Connect Fitting ; Type: 90 Deg Swivel Elbow Connector ; Two Tube Size (OD) : 10mm = 0.39″
- Operating Pressure : 0-1MPa ; Operating temperature：-10 – 60 Degree Celsius
- 【GOOD DESIGN】- Push-to-connect tube connection on two end .A good release cap can withstand greater and stronger pressure without tripping.
- 【ADVANTAGE】- This Air fitting Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
- 【APPLICATION】- Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
Product Features:

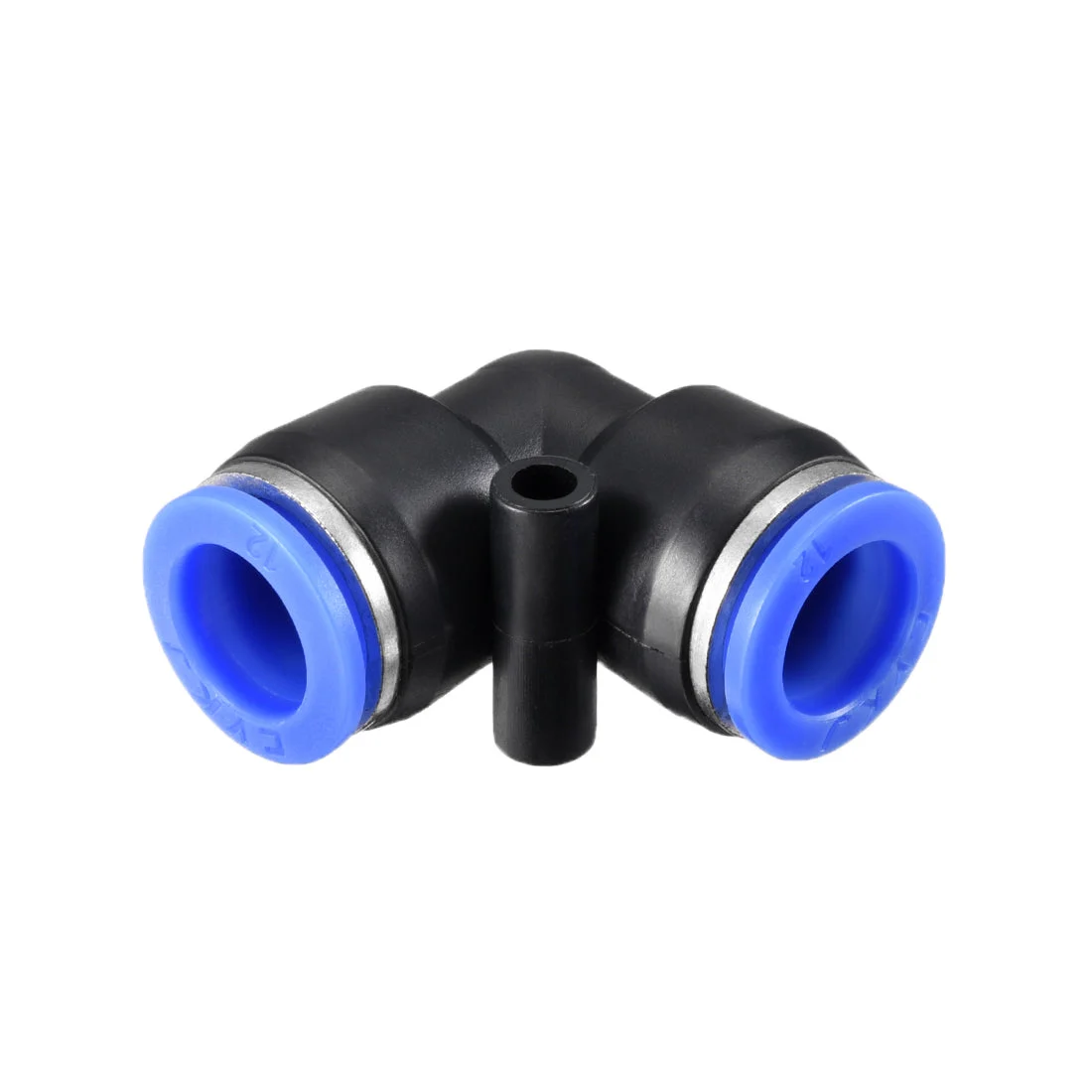

Product Name : Connect Fitting
Model : PV12
Color : Blue,Black
Net Weight :112g
Material : Plastic
Two Tube Size (OD) : 12mm = 0.47″
Type: 90 Deg Swivel Elbow Connector
Operating Pressure : 0-1MPa
Operating temperature:-10 – 60 Degree Celsius
Dimension : 38mm x 38mm x 21mm / 1.5″ x 1.5″ x 0.8″ (L x W x H )
Package Content:
10pcs x Fitting
Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.A good release cap can withstand greater and stronger pressure without tripping.
3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
5.The small tube is used for fixed.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
