About this item
- Float Ball Number: 2; Max Contact: Rating 10W; Max Switching Voltage: 110VAC; Max Switching Current: 0.5A
- Float Ball Size(Approx): 22x21mm/0.87×0.83inch(Dia*H);Thread Diameter: 10mm/0.39inch; Total Length: 113mm/4.45inch
- The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall
- Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
- Widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
Specifications:

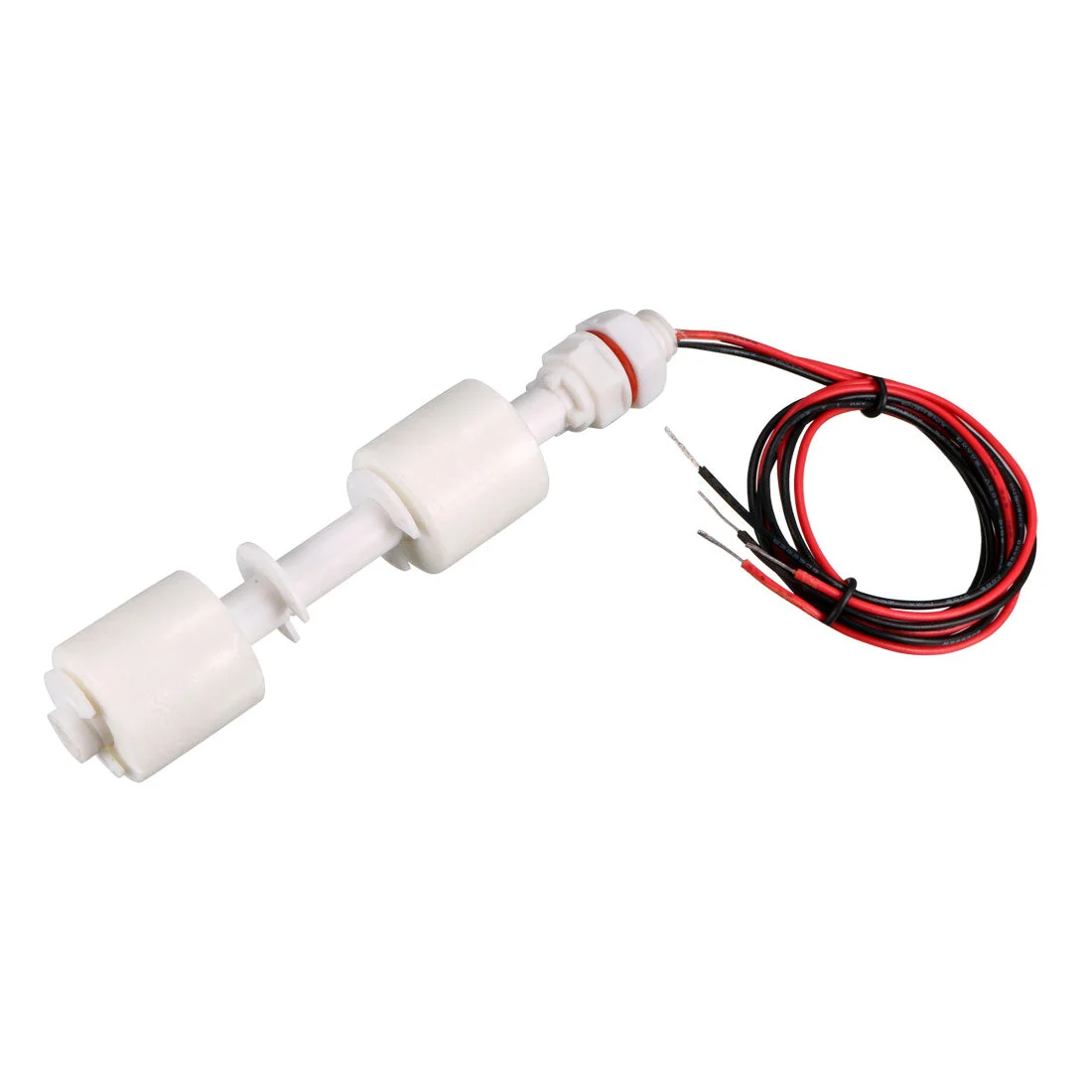

Product Name: Float Switch
Float Ball Number: 2
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C
Float Ball Material: PP
Float Ball Size(Approx): 22x21mm/0.87×0.83inch(Dia*H)
Thread Size(Approx): 10mm/0.39inch
Total Length: 113mm/4.45inch
Cable Length: 390mm/15.35inch
Net Weight: 27g
Package Content
1 x Float Switch
