About this item
- Operation Type: Momentary; Ui: 600V; Ith: 10A; Screw Hole Dia: 4mm / 0.16″
- Hole Distance(center to center): 59 x 40mm/ 2.32″ x 1.57″ (L*W); Total Size (Approx.): 72 x 72 x 94mm / 2.83 x 2.83 x 3.7″ (L*W*T)
- Comes with quick connect terminals to allow for fast connections.

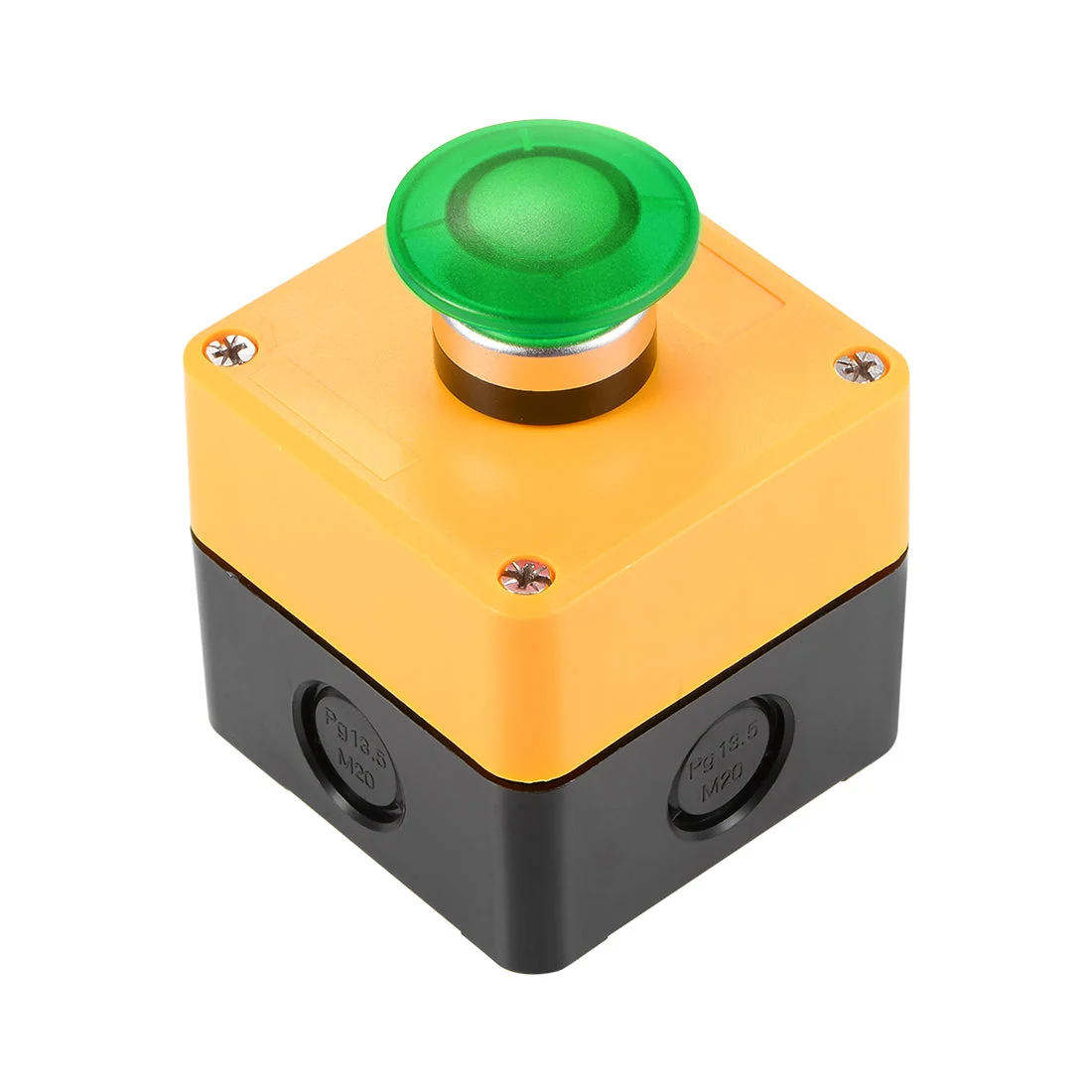

- The push button switch station have one switch, a 1NO 1NC momentary mushroom green push button switch, yellow and black case.
- Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Description:
The push button switch station have one switch, a 1NO 1NC momentary mushroom green push button switch, yellow and black case.
Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
Specification:
Material: PC
Action Type: Momentary
Contact Type: 1NO 1NC
Button Color: Green
Ith: 10A; Ui: 600V
Screw Hole Dia: 4mm / 0.16″
Hole Distance(center to center): 59 x 40mm/ 2.32″ x 1.57″ (L*W)
Total Size (Approx.): 72 x 72 x 94mm / 2.83 x 2.83 x 3.7″ (L*W*T)
Package Content:
1 x Push Button Switch Station
