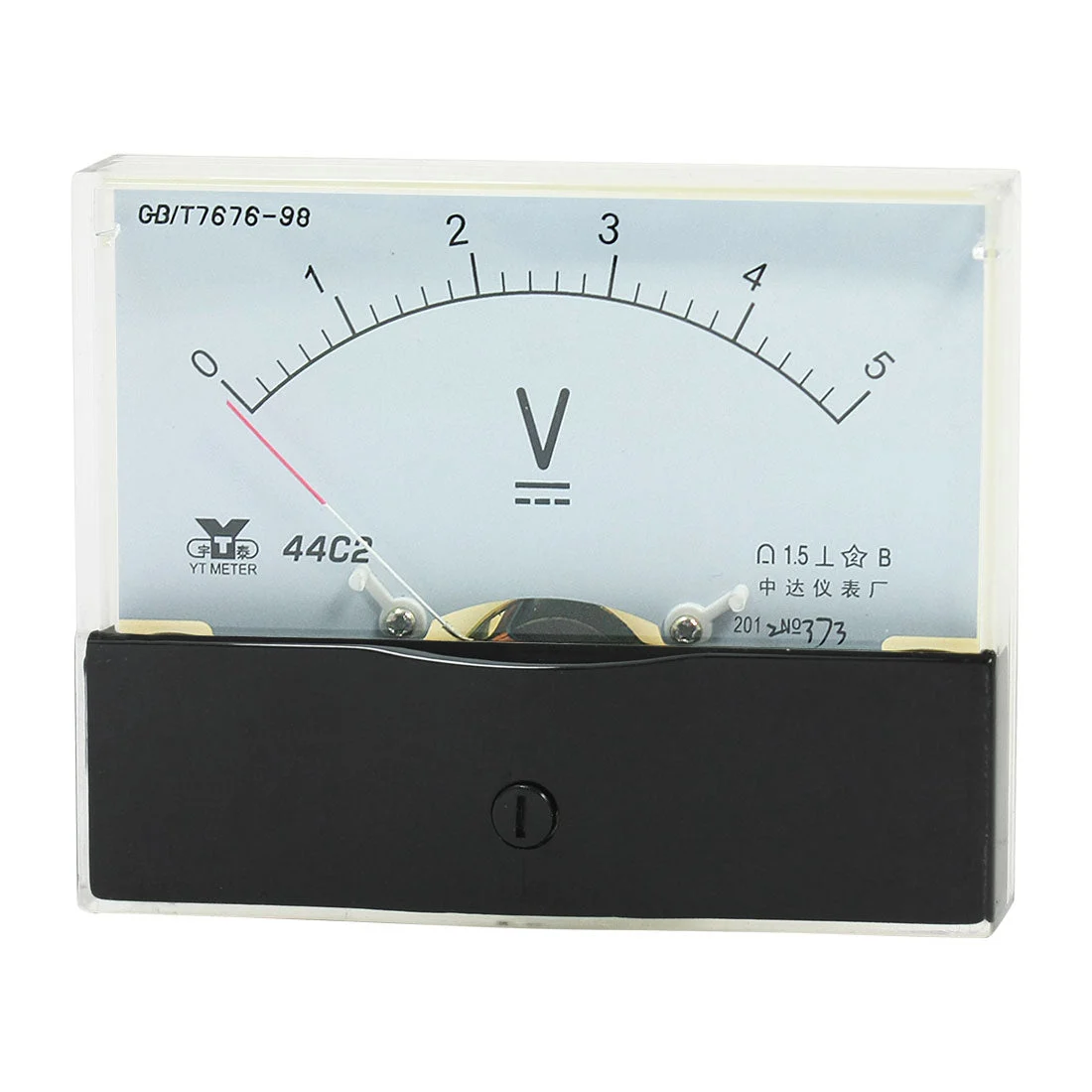

Rectangle Measurement Tool Analog Panel Voltmeter Volt Meter DC 0 – 5V Measuring Range 44C2

About this item

• Product Name : Analog Voltmeter;Type : 44C2;Measuring Current Range : DC 0-5V
• Accuracy : 1.5;Operating Temperature : -20 ~40°C;Insulation Force : AC 2KV, 50Hz
• Panel Size(Approx) : 100 x 80 x 12mm / 3.9″ x 3.1″ x 0.47″(L*W*T);Thread Size : Long One: M4 x 11mm (D*L) Short One: M3 x 7.5mm (D*L);Overall Depth(Not Included Screw ) : 48mm / 1.9″
• Mounting Size : 50 x 36mm / 2.0″ x 1.4″;Color : Black, White, Clear
• Net Weight : 115g;Package Content : 1 x Analog VoltmeterSeveral Installing Parts

• Measures voltage range of DC 0-5V, 1.5 class accuracy.
• Clear and easy to read scale and a button for fine tuning the dial.
