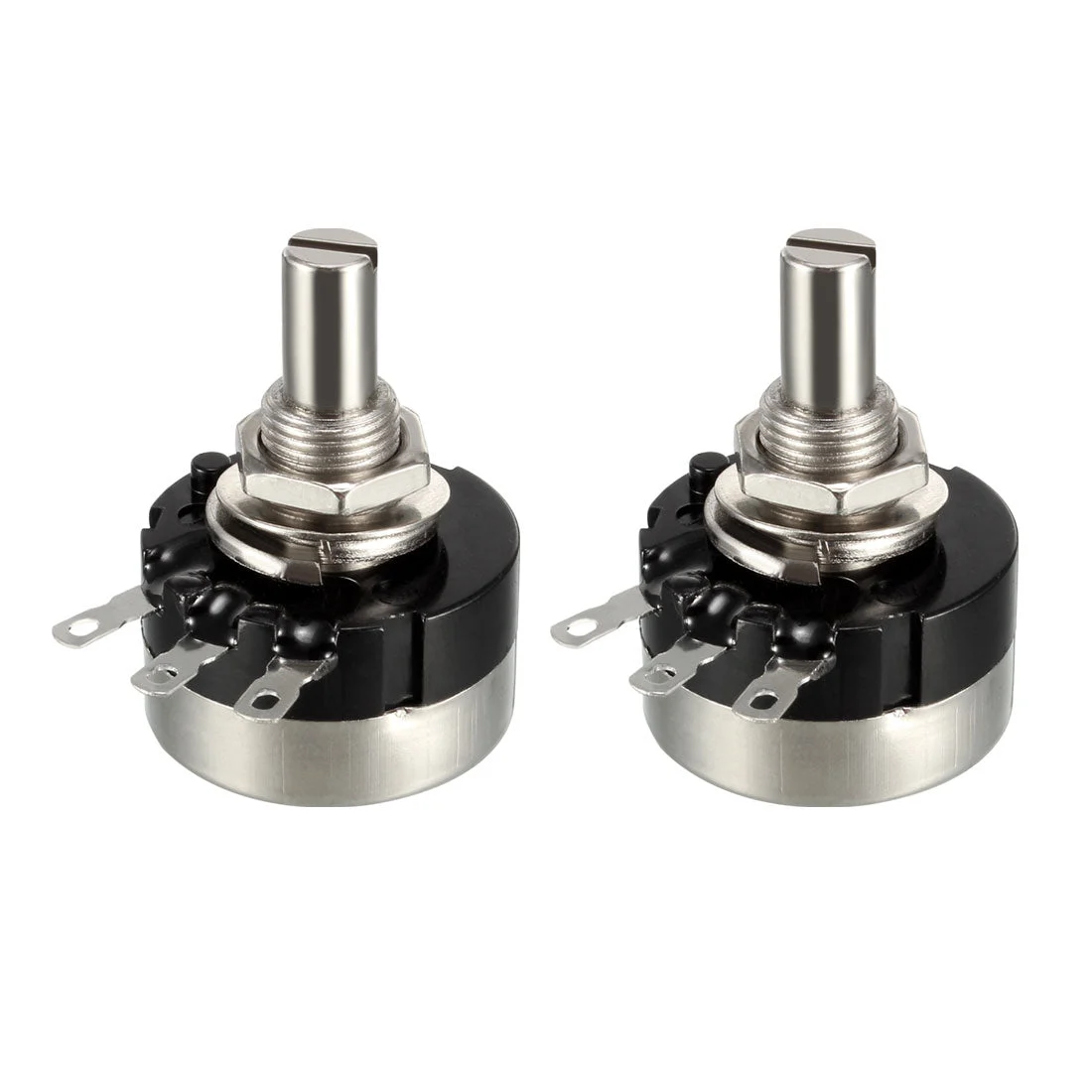

RV24YN20S 5K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer 2pcs

About this item

• Model: RV24YN 20S/B502,, metal corrosion resistant, high mechanical strength
• Resistance Value: 5K Ohm Tolerance:+/-10%
• Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
• Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
• Top adjustment type and knurled shaft for easy operate in daily use.

• Product Name: Carbon Film Potentiometer
• Model: RV24YN 20S/B502
• Material: Carbon film Metal
• Resistance Value: 5k ohm
• Power: 2W
• Tolerance: +/-10%
• Turn Number: Single Turn
• Terminals Number: 3
• Features: Round Shaft
• Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
• Screw Thread Dia.: 8.7mm/0.34 inch
• Shaft Diameter: 6mm / 0.24 inch
• Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
• Shaft Total Length 20.5mm/0.8 inch
• Color: Black, Silver Tone
• Package Content: 2 x Carbon Film Potentiometer
• Features: 5K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
• Top adjustment type and knurled shaft for easy operate in daily use.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
