About this item
- General purpose power transmission coupling, also used in motion control applications and rotational power transmissions, is good replacement for your needs.
- It is designed to transmit torque while damping system vibrations and accommodating misalignment to protect other components from damage.

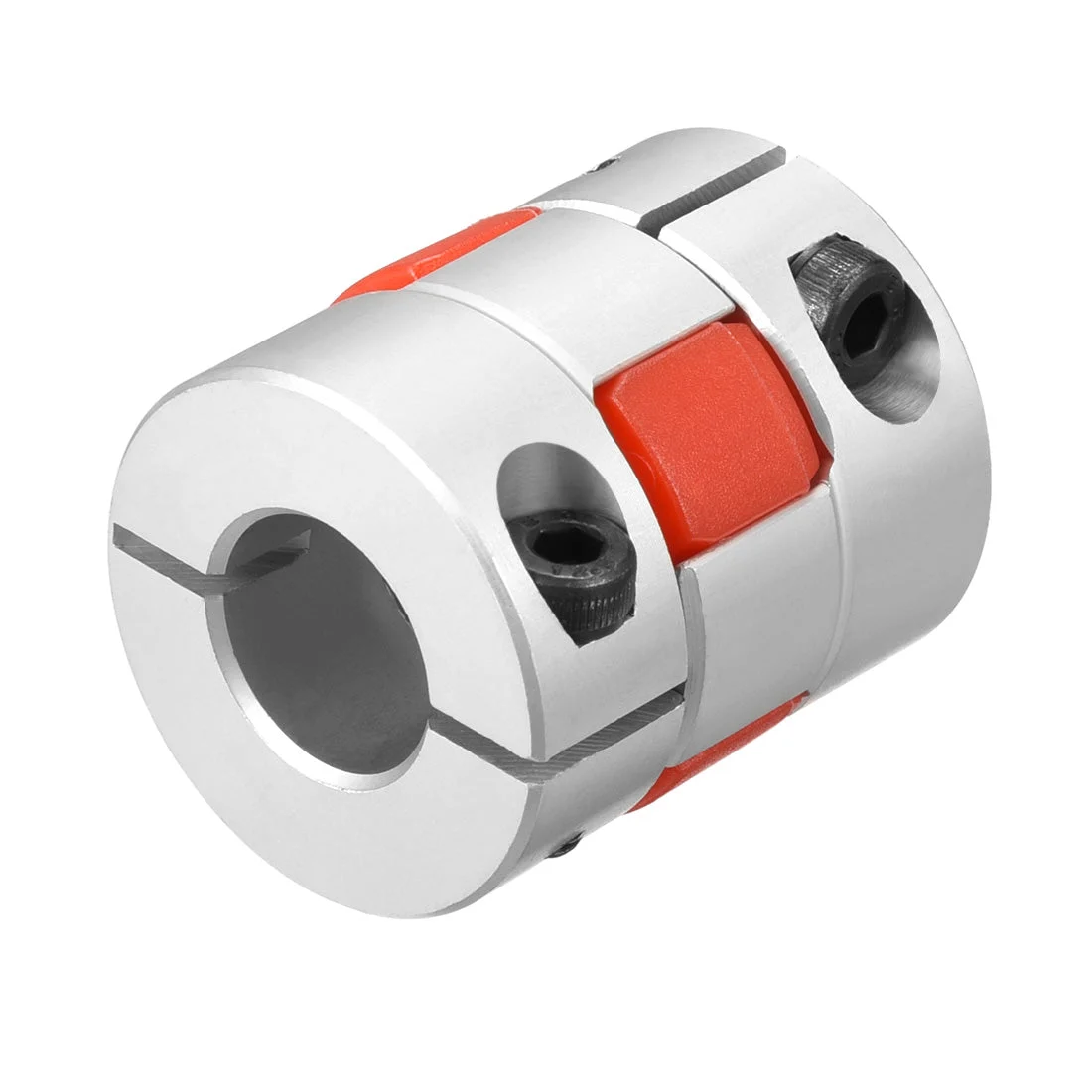

- Jaw couplings have three parts: two metallic hubs and an elastomer insert called an element, but commonly called “”.
- Main Color: Silver Tone; Shaft Usage: 12mm to 15mm/0.47 inch to 0.59 inchTotal Size: 35 x 30mm / 1.38 inch x 1.18 inch (L*D); Feature: Set screwsThread Size: M4
- Wear resistant ,high hardness and excellent response.Super elastic torque can absorb vibration, appropriate a large torque transmission.
Mainly used for servo motors, spindle, step motor and so on.
Wear resistant ,high hardness and excellent response.
Super elastic torque can absorb vibration, appropriate a large torque transmission.
Specification:
Color: Silver Tone
Net Weight: 50g
Material: Aluminum Alloy
Fixed Type: Clamp
Thread Size: M4
Connection Diameter: 12mm to 15mm / 0.47 to 0.59 inch
Total Length: 35mm /1.38 inch
Outside Diameter : 30mm/ 1.18 inch
Package List:
1x Flexible Shaft Coupler
