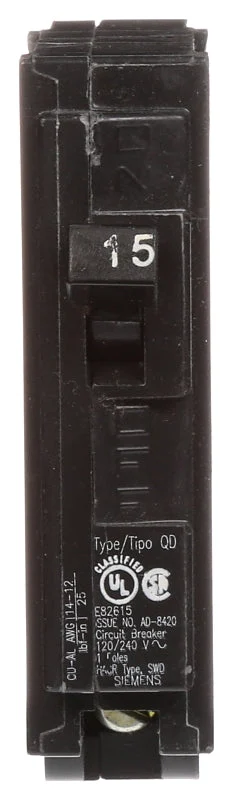

Siemens D115 Circuit Breaker, Low Voltage, QD, 15 A, 1 -Pole, 120 VAC, Plug Mounting

Siemens Circuit Breaker, Low Voltage, QD, 120 VAC, 15 A, 1 Pole, 10 kA Interrupt, Magnetic, Thermal Actuator, 14 to 10, 14 to 12, 12 to 10 AWG Wire, Plug Mounting, Dimensions: 3 in W x 3 in D x 1 in H, 40 deg C Operating, Suitable for: QO2L30F/S, QO2-4L70F/S, QO2-4L70TS, QO2-4L70RB Panel Boards

Features

• 3/4 in format

Additional Information

• Actuator Type: Magnetic Thermal
• Current Rating: 15 A
• Dimensions: 3 in W x 3 in D x 1 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Poles: 1
• Operating Temperature: 40 deg C
• Suitable for: QO2L30F/S QO2-4L70F/S QO2-4L70TS QO2-4L70RB Panel Boards
• Type: Low Voltage QD
• Voltage Rating: 120 VAC
• Wire Size: 14 to 10 14 to 12 12 to 10 AWG
