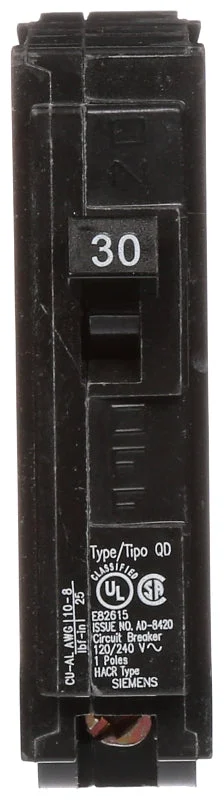

Siemens D130 Circuit Breaker, Low Voltage, QD, 30 A, 1 -Pole, 120 VAC, Plug Mounting

Siemens Circuit Breaker, Low Voltage, QD, 120 VAC, 30 A, 1 Pole, 10 kA Interrupt, Magnetic, Thermal Actuator, 10 to 8, 10 to 6 AWG Wire, Plug Mounting, Dimensions: 3.3 in D x 3 in H, 40 deg C Operating, Suitable for: QO2L30F/S, QO2-4L70F/S, QO2-4L70TS, QO2-4L70RB Panel Boards
Unit: EA
UPC: 662643631906
Model Number: D130

Features

• 3/4 in format

Additional Information

• Actuator Type: Magnetic Thermal
• Current Rating: 30 A
• Dimensions: 3.3 in D x 3 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Poles: 1
• Operating Temperature: 40 deg C
• Suitable for: QO2L30F/S QO2-4L70F/S QO2-4L70TS QO2-4L70RB Panel Boards
• Type: Low Voltage QD
• Voltage Rating: 120 VAC
• Wire Size: 10 to 8 10 to 6 AWG
