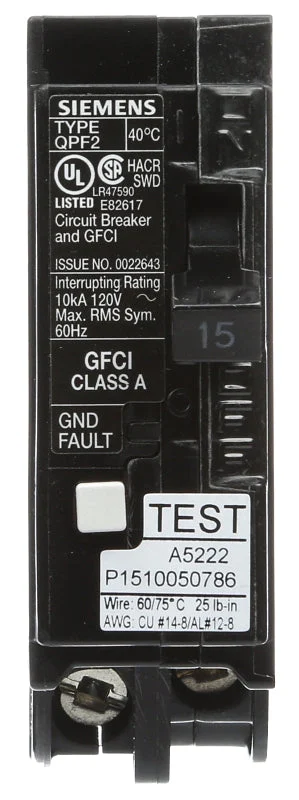

Ground fault circuit interrupters are an effective means of preventing severe electrical shock. To protect equipment from damaging ground faults, Siemens GFCIs continuously monitor the difference in current between the hot and neutral conductors. If the electricity going to an outlet equals the current coming back from the outlet, the GFCI is dormant. If the electricity going to an outlet is greater than 5 mA than the current coming back from the outlet, the GFCI will open the circuit to stop of flow of electricity.
Unit: EA
UPC: 887621216511
Model Number: QF115A
Features
- Resists false tripping, shielded to prevent RF interference
- Standard 1 in per pole format with plug-in design
Additional Information
- Actuator Type: Switch
- Current Rating: 15
- Dimensions: 12.7 in L x 7 in W x 2.38 in D
- Interrupt Rating: 10
- Mounting Type: Plug-In
- Number of Poles: 1
- Operating Frequency: 50/60
- Operating Temperature: 40
- Terminal Type: Lug
- Trip Sensitivity: 5
- Trip Type: Thermal Magnetic
- Type: GFCI
- Voltage Rating: 120
- Wire Size: 14 to 10
