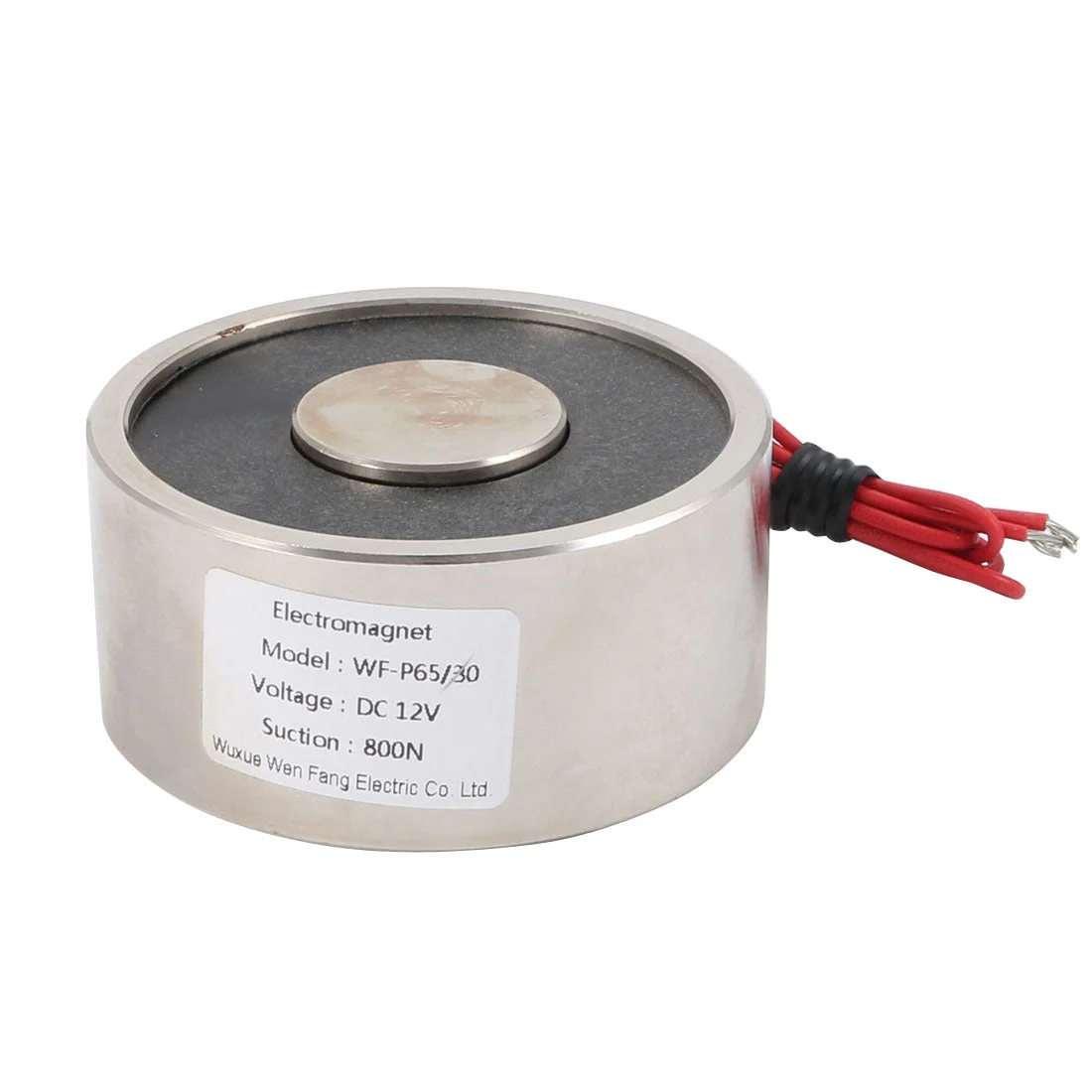

Uxcell 12V DC 800N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

About this item

• Input Voltage: 12V DC ; Peak Force :800N Holding Force :600N Duty-cycle : 50%; Electric time:Less than 7 minutes ; Thread size :M8*12; Material: Pure Iron
• Overall Size : 65 x 30 mm /2.6 x 1.2 inch(Dia. *T); Lead Length : 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note: The Force will be decreased due to long time working, lower voltage and improper Sucked object etc.

It is recommended that the actual force is less than 80% of the sucked force on the name plate.

Specification:

Material: Metal

Input Voltage: 12V DC

Peak Force :800N

Holding Force :600N

Duty-cycle  : 50%;

Electric time:Less than 7 minutes ;

Overall Size : 65 x 30 mm /2.6 x 1.2 inch(Dia. *T)

Thread DIA : 7mm

Lead Length : 24cm/9. 5 inch

Cautions for the use of electromagnets:

1.The object absorbed must be a good magnetic material.

2.The suction surface of the electromagnet must be smooth and clean.

3.The thickness of the object is 5mm best.

4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes:

1 x Holding Electromagnet
