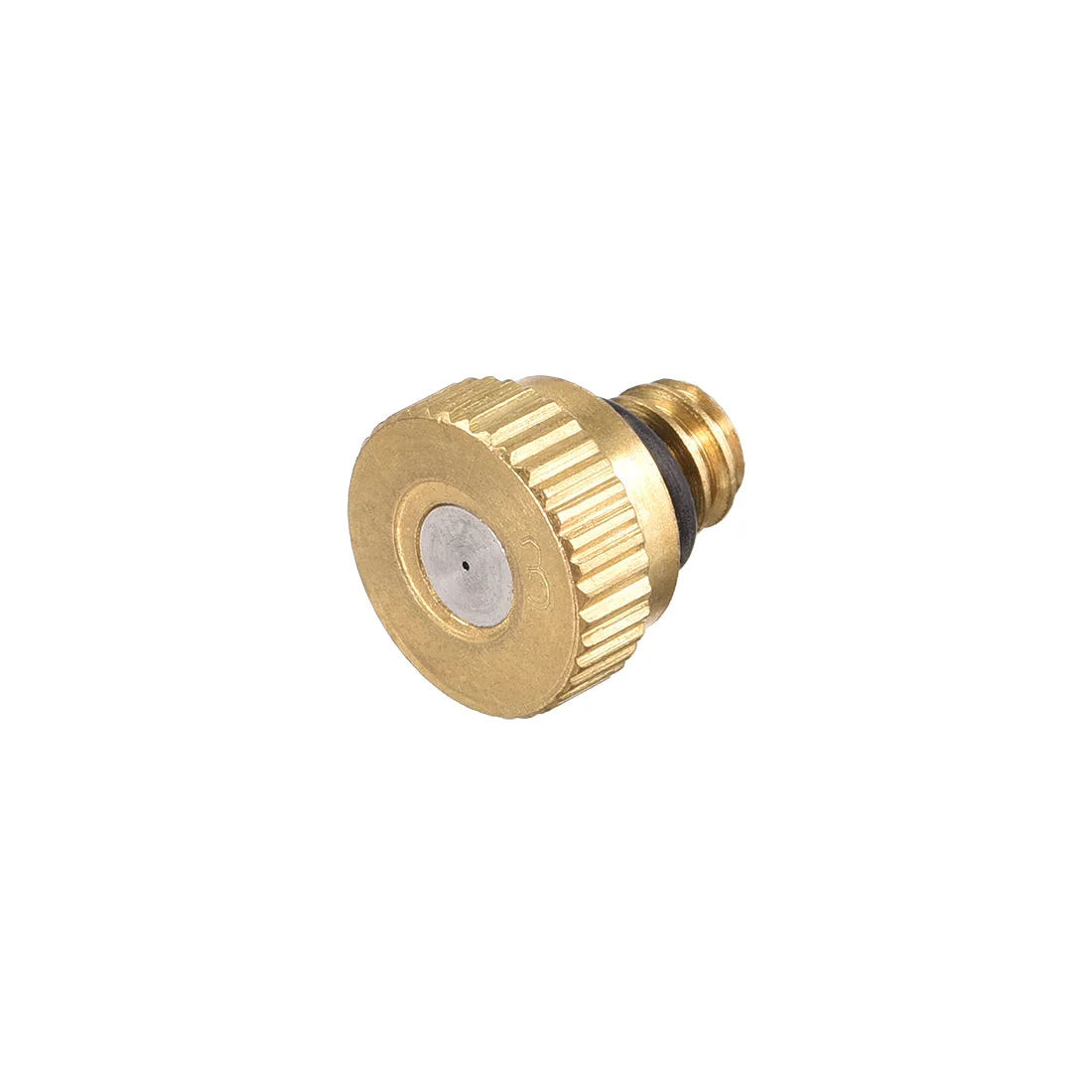

Uxcell Brass Misting Nozzle – 10/24 UNC 0.6mm Orifice Dia Replacement Heads for Outdoor Cooling System

About this item

• [EASY TO INSTALL] – Easily screw into any 10/ 24 UNC threaded mist nozzle opening. Leak-proof, self-sealing o-ring included with each nozzle; no tape or sealant is required.
• [MATERIAL] – Made of brass with stainless steel orifice, anti-rust and durable. The nozzle is more uniform and the working effect is better.
• [TECHNICAL PARAMETERS] – 0.004″ (0.1mm) orifice diameter, 35-70kg working pressure, 10-30ml/min flow rate. Please adjust your pressure valve slowly according to the pressure range provided by us to avoid blowout of the nozzle.
• [WIDELY USED] – It is widely used in outdoor cooling systems, agricultural irrigation systems, greenhouses, landscaping, small fountains, gardens, patios, sheds, dust removal, lawn spraying systems, artificial fog and other humidification places.
• [NOTICE] – This misting nozzle does not have a filtering device. Please make sure that there is no debris in the water when you use it. It will be better if filtering device can be installed at the water inlet pipe. This can avoid clogging.

1. This misting nozzle does not need to use air compressed, can use liquid pressure to form a very fine mist, excellent misting effect, energy and water saving, low cost, good effect, no leakage.
2. It is used a sturdy brass body with stainless steel orifice, widely used in dust removal, landscaping, cool down, artificial fog and other humidification place.
3. The nozzle requires simple maintenance; soaking periodically in misting nozzle cleaner to remove mineral deposits that may accumulate with usage.
4. Leak-proof, self-sealing o-ring included with each nozzle; no tape or sealant is required.
5. This misting nozzle does not have a filtering device. Please make sure that there is no debris in the water when you use it. It will be better if filtering device can be installed at the water inlet pipe. This can avoid clogging.

Specification:

Material: Brass, Stainless steel

Thread size: UNC 10-24

Orifice Diameter: 0.1mm / 0.004″

Pressure: 35-70 kg/cm

Flow Rate: 10-30 ml/min

Total Size: 9.5mm x 9mm / 0.37″ x 0.35″ (Max.D*H)

Package Content:

1 x Misting Nozzle
