About this item

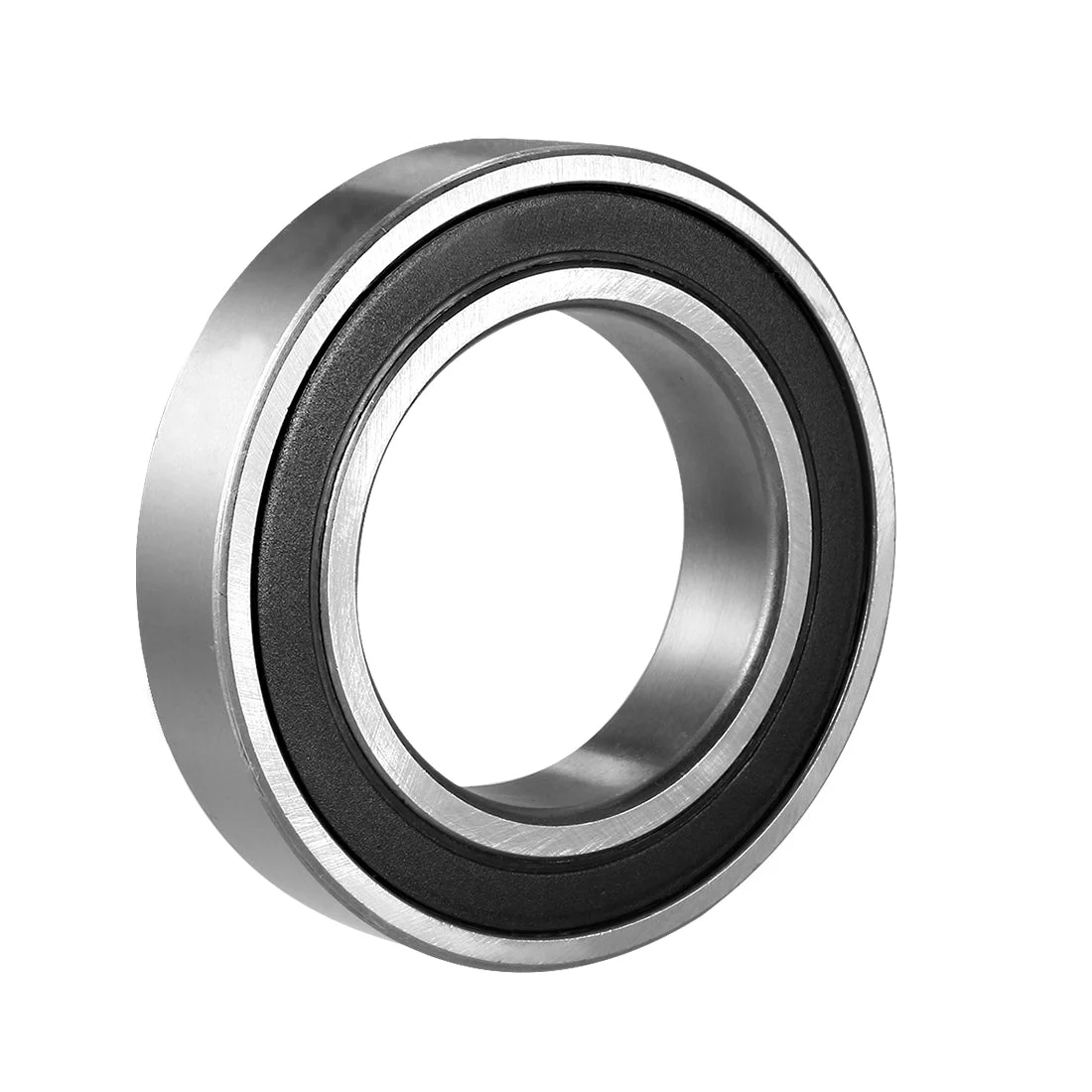

- Size: 6004RS (Inner Dia.=20mm, Outer Dia.=42mm, Thickness=12mm)
- Sealed on SINGLE SIDE of the bearing for easy lubrication and maintenance while protecting from dirt. Ideal for vertical installation
- Chromium Steel long-life bearings, smooth and low noise
- ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
- Pre-Lubricated, Easy to maintain
NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
- Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
- With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
- Single-row, pre-lubricated, normal accuracy.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: 6004RS
Sealed Type: Single Sealed
Cage Material: Stamping Steel
Inner Diameter (d): 20mm
Outer Diameter (D): 42mm
Thickness (B): 12mm
Dynamic Load Rating (Cr): 9.38 kN
Static Load Rating (Cor): 5.02 kN
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 1 Pcs
Weight: 66g
