About this item

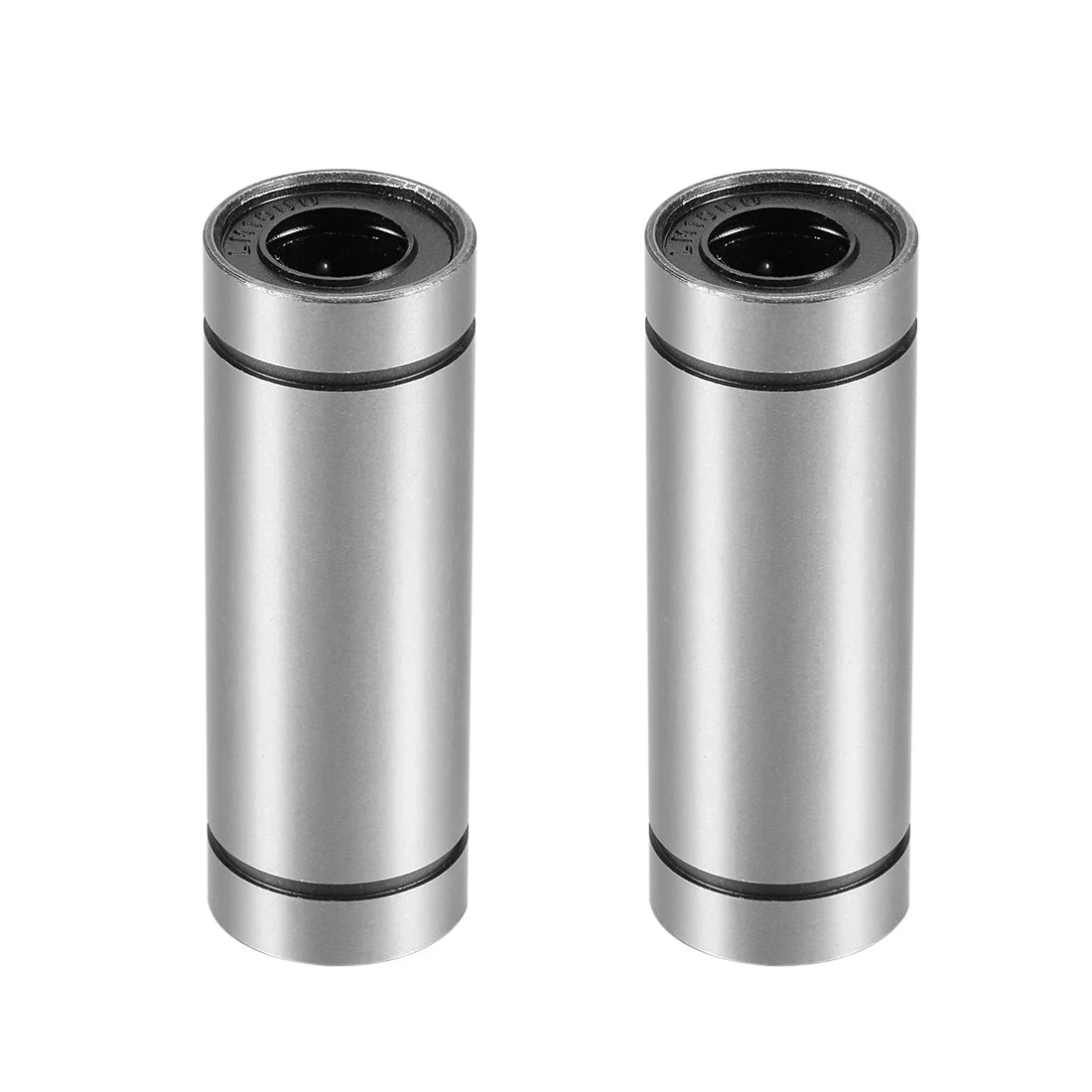

- Model: LM6LUU, 6mm Nominal Shaft Diameter
- Linear Motion Ball Bearing Bushing Sealed on Both Side
- Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
- Smooth moving, low friction, high rigidity and long working life
- Suitable for kinds of electronic equipment/guide bar, and pillar
Description:
-LMLUU series Linear Ball Bearing Slide Block Units are complementary to linear ball bearings.
-They usually consist of a light-weight, aluminum housing to provide high strength and stiffness.
-Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
-It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LM6LUU
Bearing Ball Material: Chromium Steel
Outer Shell Material: Chromium Steel
Cage Material: Nylon
Nominal Shaft Diameter (dr): 6mm
Outer Diameter (D): 12mm
Total Length (L): 35mm
Ball Circuit: 4
Static Load Capacity (Cor): 0.529kN
Dynamic Load Capacity (Cr): 0.324kN
Package Content:
2 x Linear Ball Bearings
