About this item

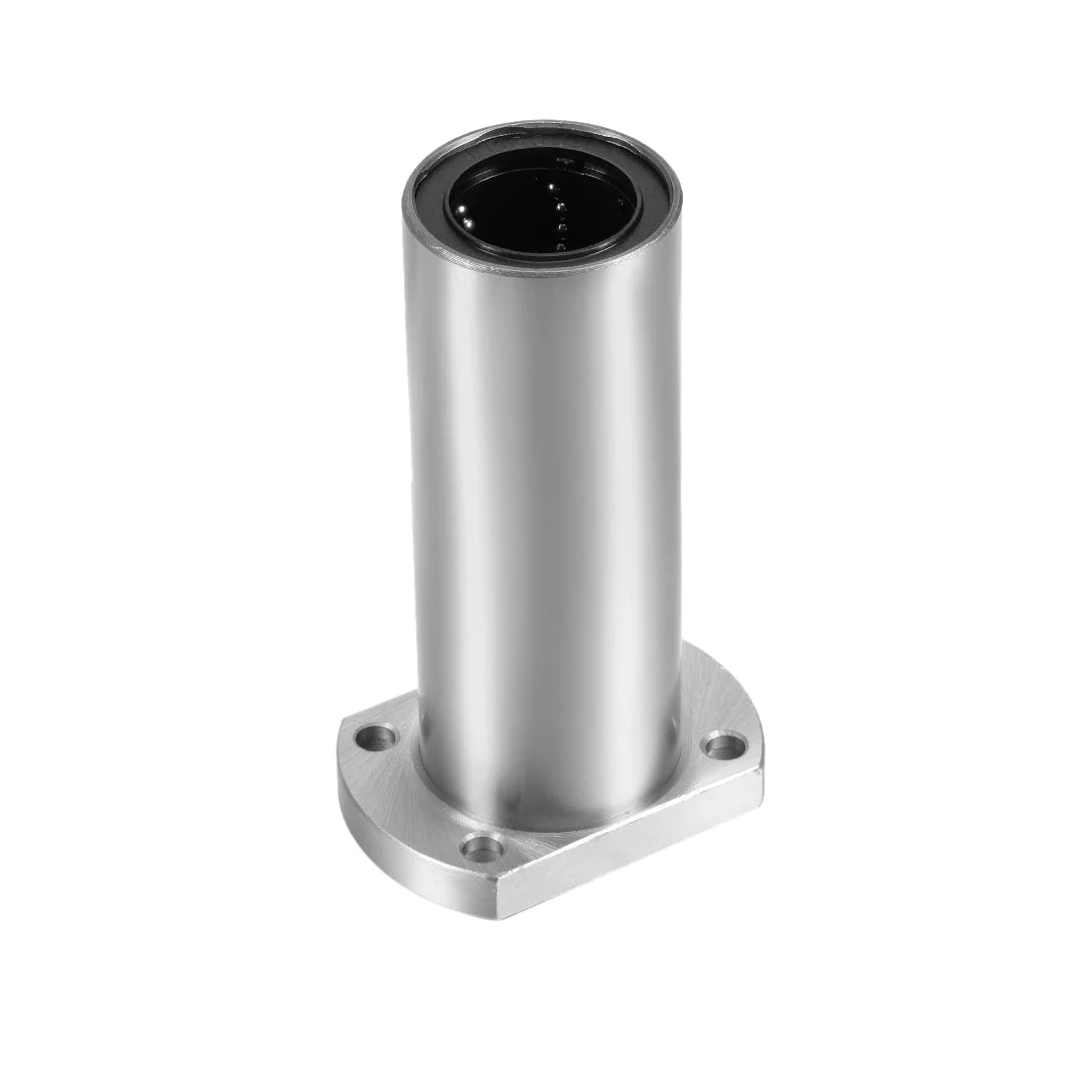

- Model: LMH8LUU, 8mm Nominal Shaft Diameter
- Alloy Steel Linear Ball Bearing Slide Block Units
- Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
- Smooth moving, low friction, high rigidity and long working life
- Suitable for kinds of electronic equipment/guide bar
Description:
-They usually consist of a lightweight, aluminum housing to provide high strength and stiffness.
-Compact design with high load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degrees Celsius.
-It is great for 3D printers, CNC, and other applications.
Specification:
Bearing No.: LMH8LUU
Bearing Ball Material: Chromium Steel
Outer Shell Material: Chromium Steel
Cage Material: Nylon
Nominal Shaft Diameter (dr): 8mm
Outer Diameter (D): 15mm
Total Length (L): 45mm
Mounting Hole Dia.: 3.4 x 6.5mm / 0.13″ x 0.26″ (d1*d2)
Mounting Hole Distance: 24mm / 0.94″
Flange Size: 32 x 21 x 5mm / 1.26″ x 0.83″ x 0.20″ (L*W*H);
Ball Circuit: 4
Static Load Capacity (Cor): 0.080kN
Dynamic Load Capacity (Cr): 0.044kN
Package Content:
1 x Linear Ball Bearings
