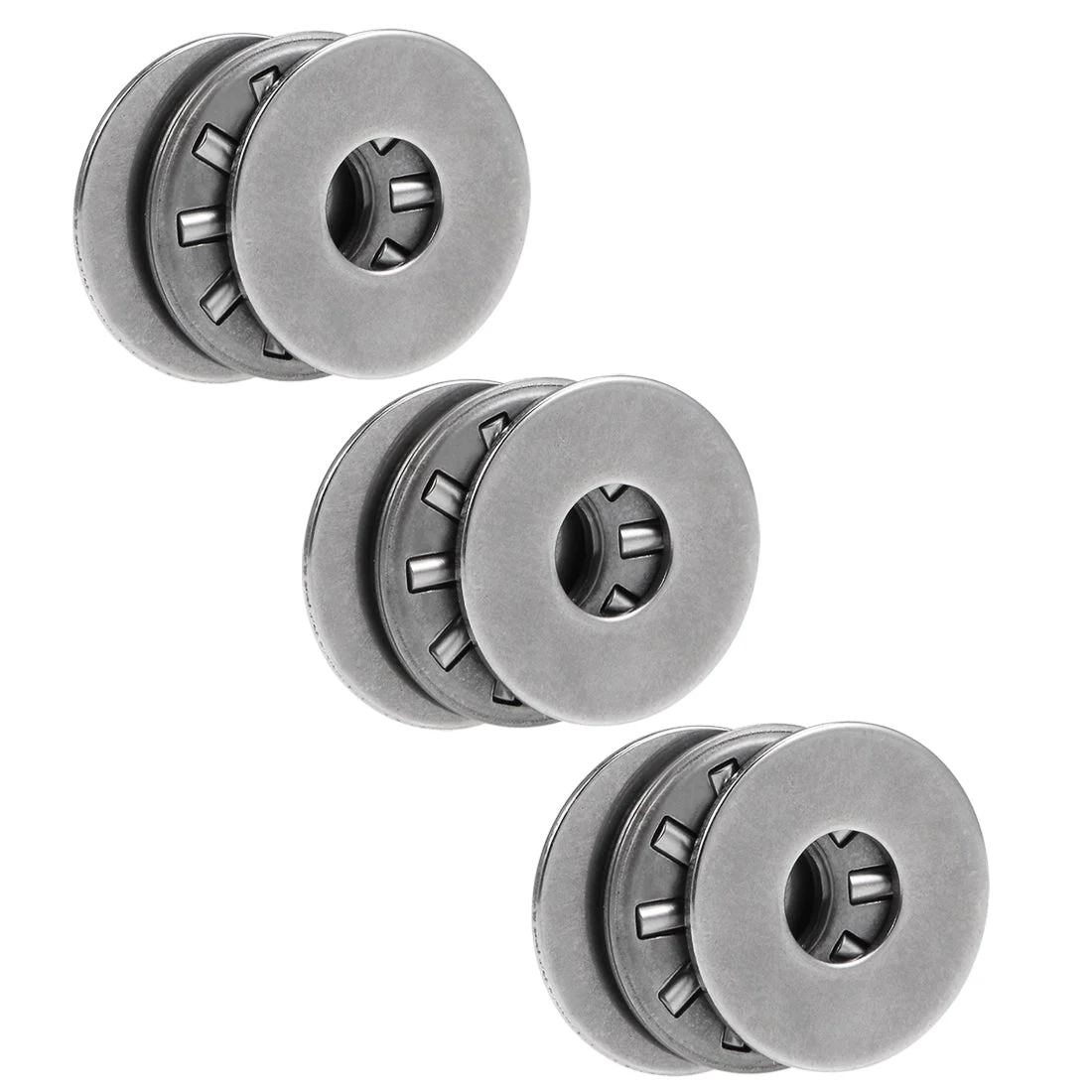

About this item
- [MODLE] – Bearing Model: TC613 (I.D.=3/8″, O.D.=13/16″, Thickness=5/64″); Washer Model: TRA613
- [MATERIAL] – Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
- [FEATURES] – Needle Roller Thrust Bearings can accommodate axial loads in one direction only
- [WASHER] – Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
- [CAPABILITY] – 12.18kN Static Load Capacity, 4.84kN Dynamic Load Capacity, 23000RPM Maximum Rotational Speed
Description:
- This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
- Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Specification:
Bearing No.: TC613+2TRA
Needle Roller Material: Chromium Steel (GCr15)
Cage Material: ST14 Steel
Bore Diameter (d): 3/8″ / 9.525mm
Outside Diameter (D): 13/16″ / 20.64mm
Bearing Thickness (T1): 5/64″ / 1.984mm
Washer Thickness (T2): 0.8mm
Total Thickness: 3.584mm
Dynamic Load Capacity (Cr): 4848N
Static Load Capacity (Cor): 12188N
Maximum Rotational Speed (Oil): 23000rpm
Number of Pack: 3 Pcs
