About this item
- Size: (I.D. (Fw)= 14mm, O.D. (D)= 20mm, Width (C)= 16mm)
- ST14 steel drawn cup, GCr15 needle rollers one way clutch
- Good heat tolerance, high load carrying capacity and stiffness
- Low cross section, enable downsizing and suit for use in restricted mounting spaces
- Pre-Lubricated. Good running properties
Specification:
Drawn Cup Material: ST14 Steel
Needle Roller Material: Chromium Steel (GCr15)
Bore Diameter (Fw): 14mm
Outside Diameter (D): 20mm
Width: 16mm
Torque: 17.3N*m
Rotating Shaft Limiting Speed: 9500rpm
Rotating Outer Ring Limiting Speed: 8000rpm
Number of Pack: 1 Pcs
Description:

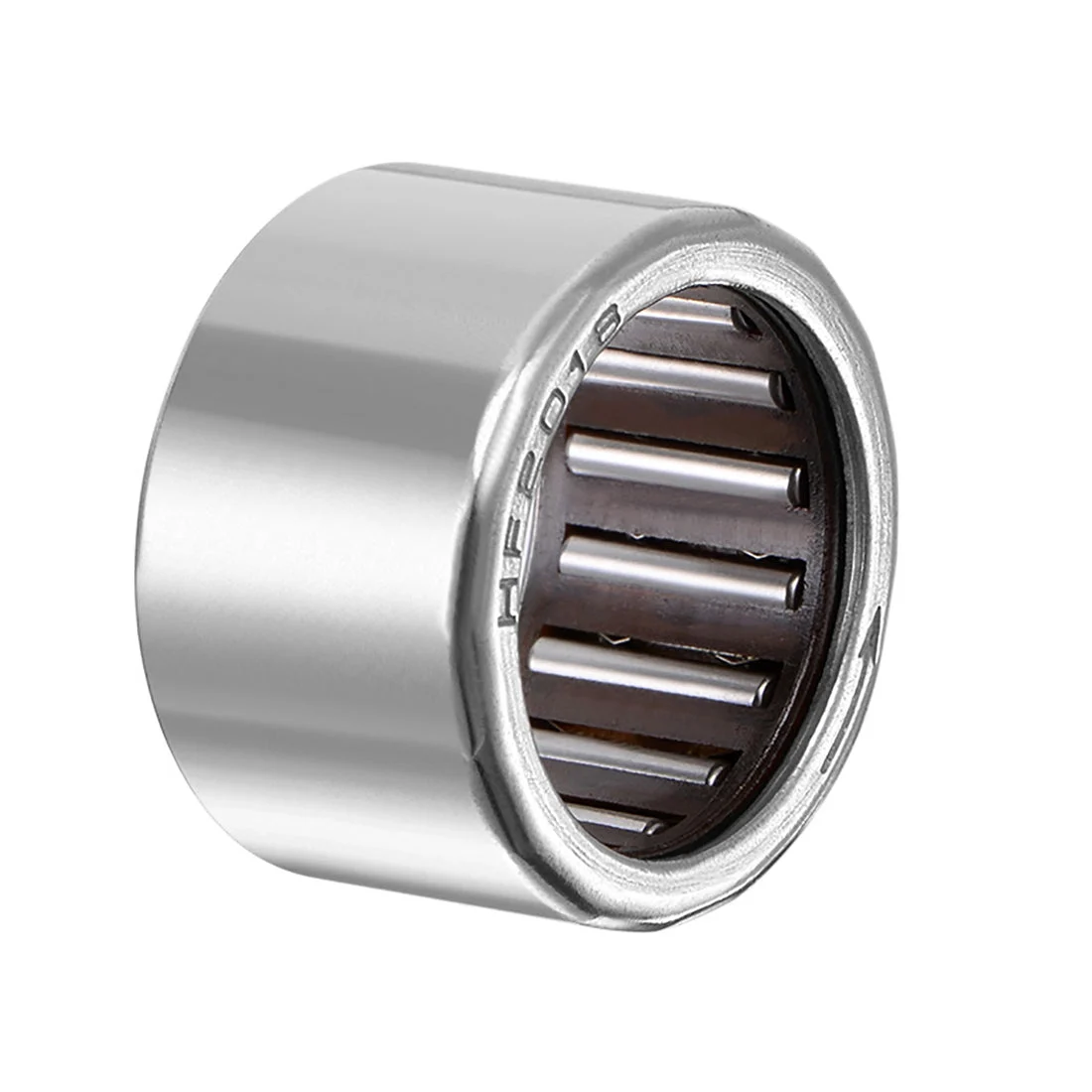

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.
