About this item

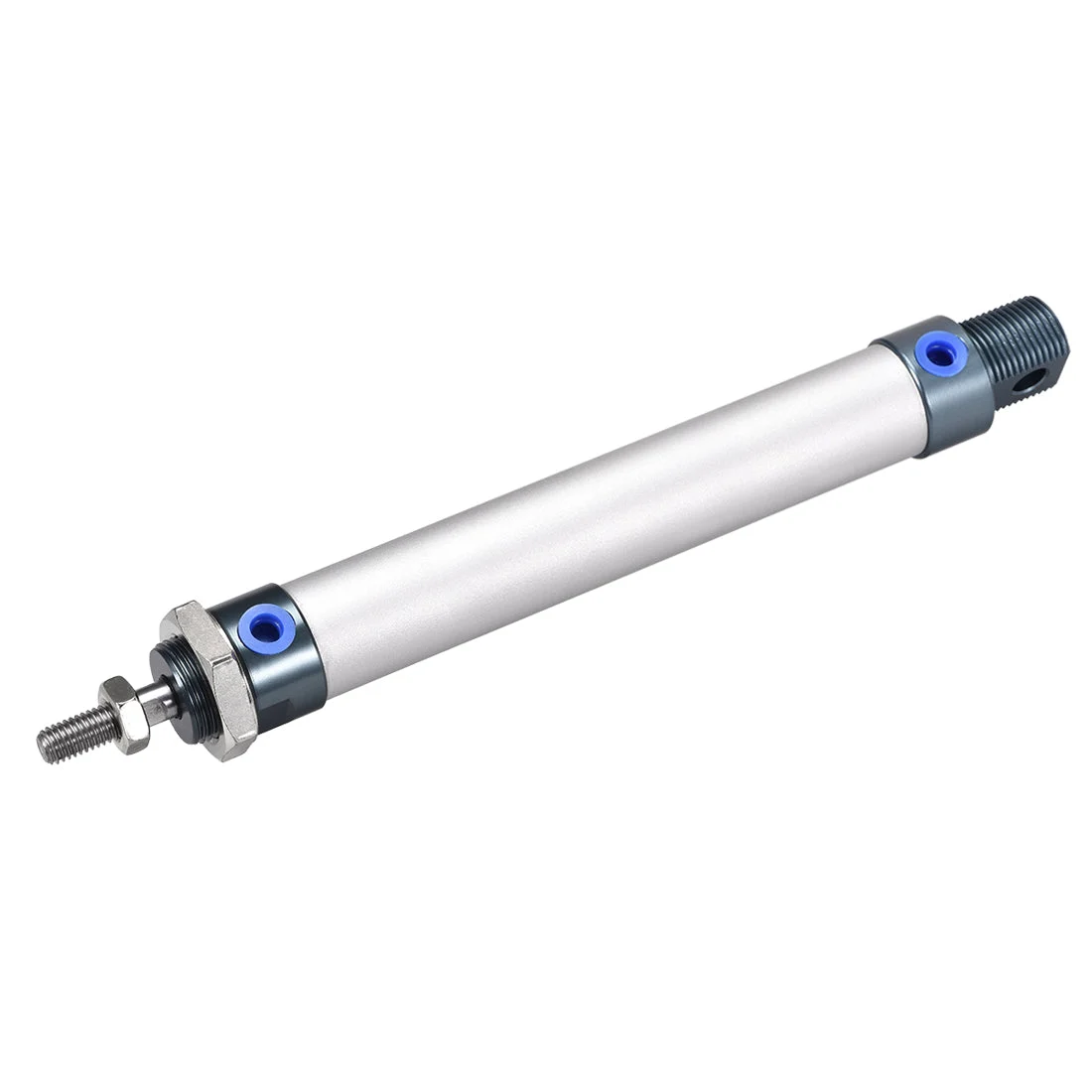

- 20mm bore and 200mm stroke,M8 Piston Rod Thread,1/8PT Rod female thread Size ,Single Rod double action ;Fluid: Air; Power: Pneumatic
- Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven
- Pneumatic Cylinder is made of aluminum alloy and metal, thickened cylinder body, sealing rod, imported grease.
- Convenient installation, stable operation, good sealing performance, wide application range
- Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
Specifications:
Material: Aluminum alloy
Bore : 20mm / 0.79″
Stoke : 200mm / 7.87″
Piston Rod Thread : M8
Rod female thread Size : 1/8PT
Rod End Thread Hole Size : 8mm / 0.31″
Rod Two End Thread Size : M22
Rod End Thread Size : 22mm x 21mm /0.87″ x 0.83″ (D x H)
Total Size : 330mm x 29mm / 12.99″ x 1.14″ (L x D)
Operating Pressure : 0.15- 1MPa
Operating temperature:-20 – 70 Degree Celsius
Package Content :
1pcs x Pneumatic Air Cylinder
Description:
1.Pneumatic Cylinder is made of aluminum alloy and metal, thickened cylinder body, sealing rod.
2.Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
3.Convenient installation, stable operation, good sealing performance, wide application range.
4.Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
