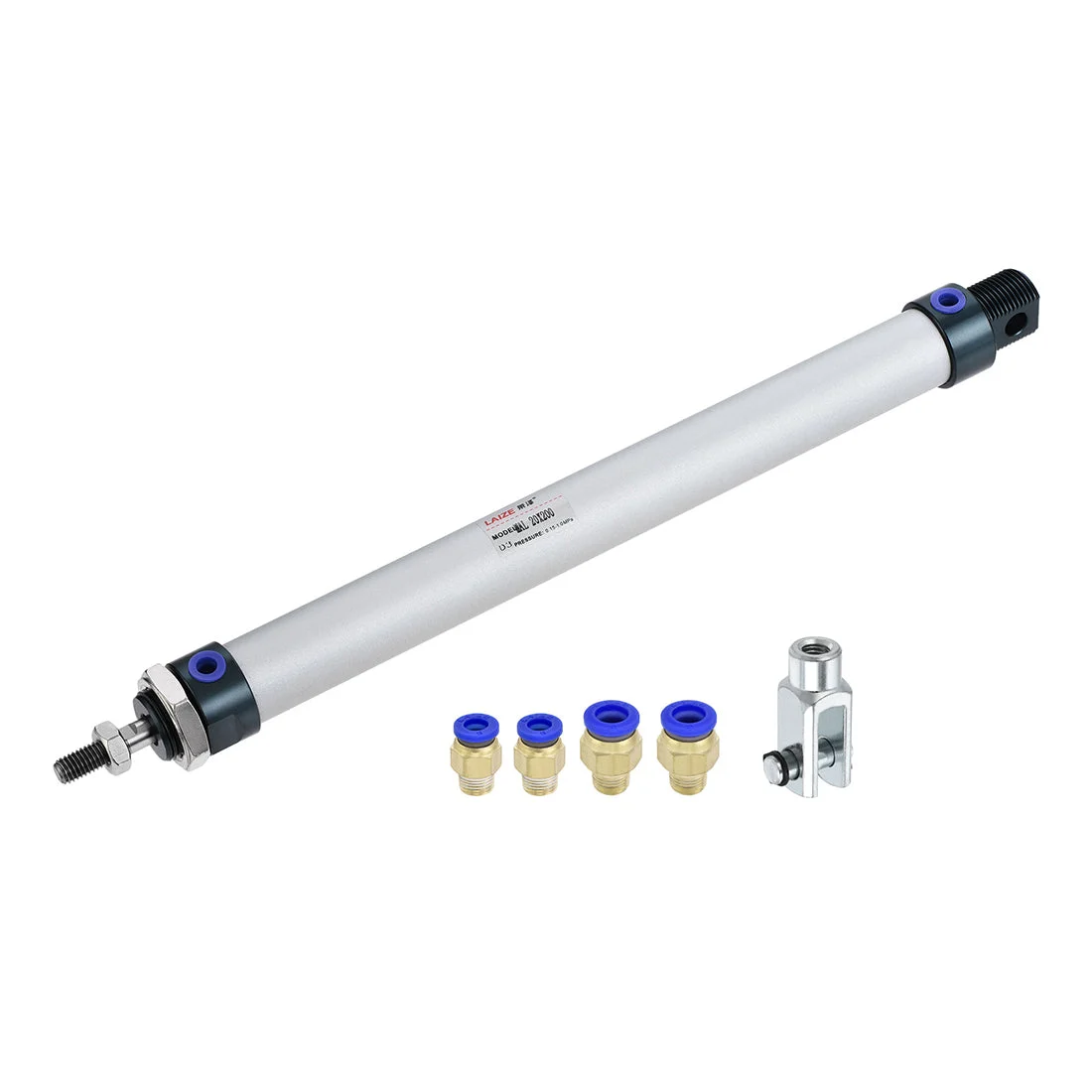

Uxcell Pneumatic Air Cylinder Y Connector Quick Fittings

About this item

• Model: MAL 20×25; Bore: 20mm / 0.79″; Stroke: 25mm / 0.98″.
• Single Rod, Double Acting, Includes Y Connector and 4pcs Quick Fittings.
• Made of Aluminum alloy, corrosion and rust resistance, more durable, suitable for long-term use.
• Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
• Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.

Features:
Made of Aluminum alloy, corrosion and rust resistance, more durable,  suitable for long-term use.
Improved sealing structure, good sealing, lubrication and guiding performance.
Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.
Specifications:
Model: MAL 20×25
Action Type: Double Acting
Rod Type: Single Rod
Material: Aluminum Alloy
Bore: 20mm / 0.79″
Stroke: 25mm / 0.98″
Port Size: G1/8
Piston Rod Thread: M8x1.25mm
Rod Two End Thread Size : M22x1.5mm
Total Length: 160mm / 6.3″
Working Pressure: 0.15~1.0 MPa / 22~145 Psi
Package Content:
1 x Air Cylinder
1 x Y Connector
2Pcs x G1/8 to 6mm Quick Fitting
2Pcs x G1/8 to 8mm Quick Fitting
