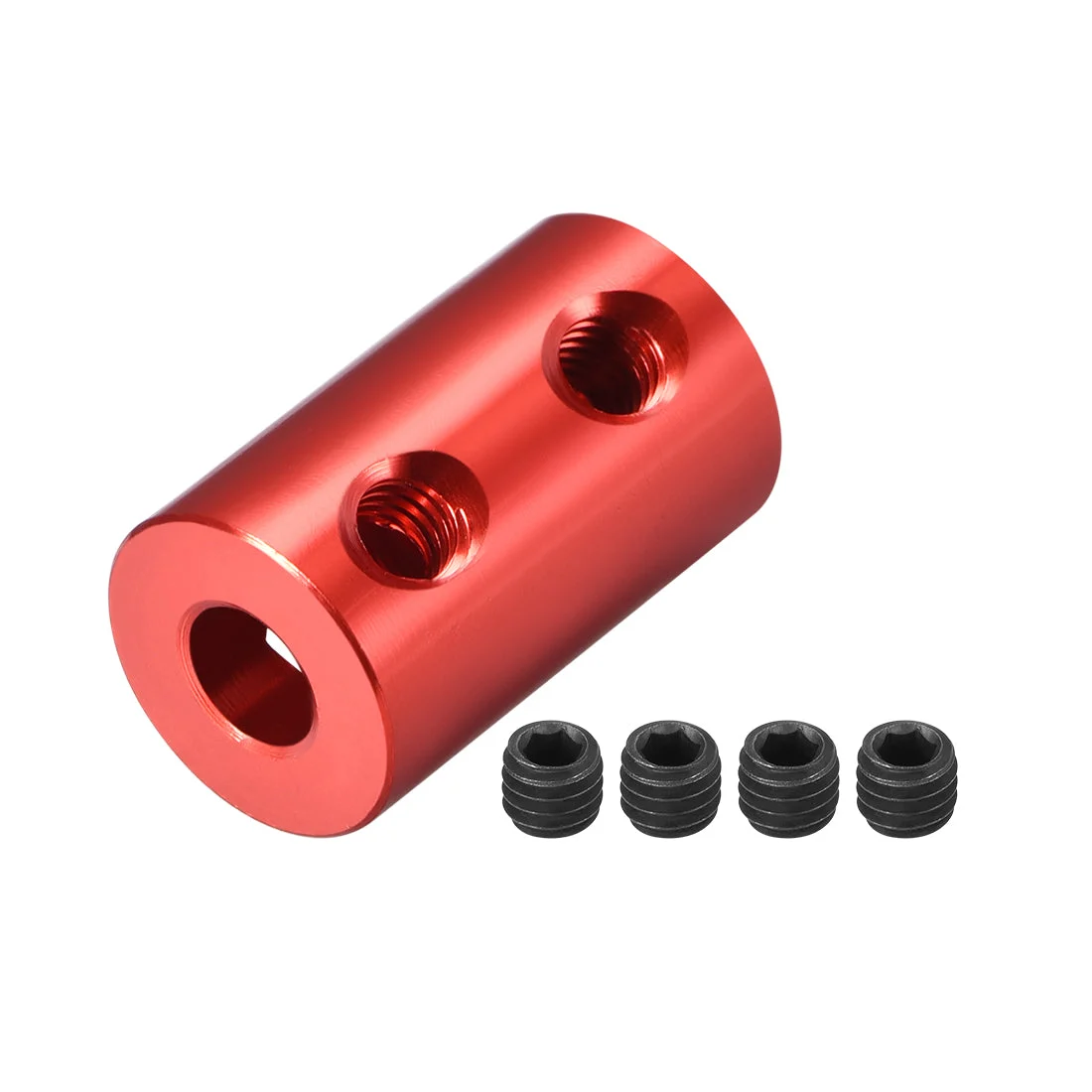

About this item
- Connection Diameter: 5mm to 5mm, Total Length: 20mm /0.78 inch, Outside Diameter : 12mm/ 0.47 inch
- Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
- Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
- NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
- Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.
Specification:
4 pcs screws design
Thread Size: M4
Color: Red
Material: Aluminum Alloy
Connection Diameter: 5mm to 5mm
Total Length: 20mm /0.78 inch
Outside Diameter : 12mm/ 0.47 inch
Through Angle: 180 Degree
Package List:
1 Pcs x Rigid Shaft Coupler
4 Pcs x M4 Screws
Description:
Made from aluminum alloy material to reduce inertia
Rigid coupling,high torque with rigidity,low inertia and excellent sensitivity
No rotation gap, elastic action can make up for symmetrical angular misalignment
Maintenance-free, oil proof and corrosion resistance
Suitable for model car, model boat, hardware, , mechanical drive situations etc
Note:
Please allow 1-3mm differs due to manual measurement
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
