About this item
- Bore: 20mm, Outside Diameter: 26mm, Length: 20mm
- Material – Made of cast brass and fitted with graphite which is self-lubricating and does not require oiling.
- Feature – Oilless, maintenance-free, good frictional property. Featured with good load capacity and wear resistance performance.
- Function – The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
- Application – Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery.
Description:

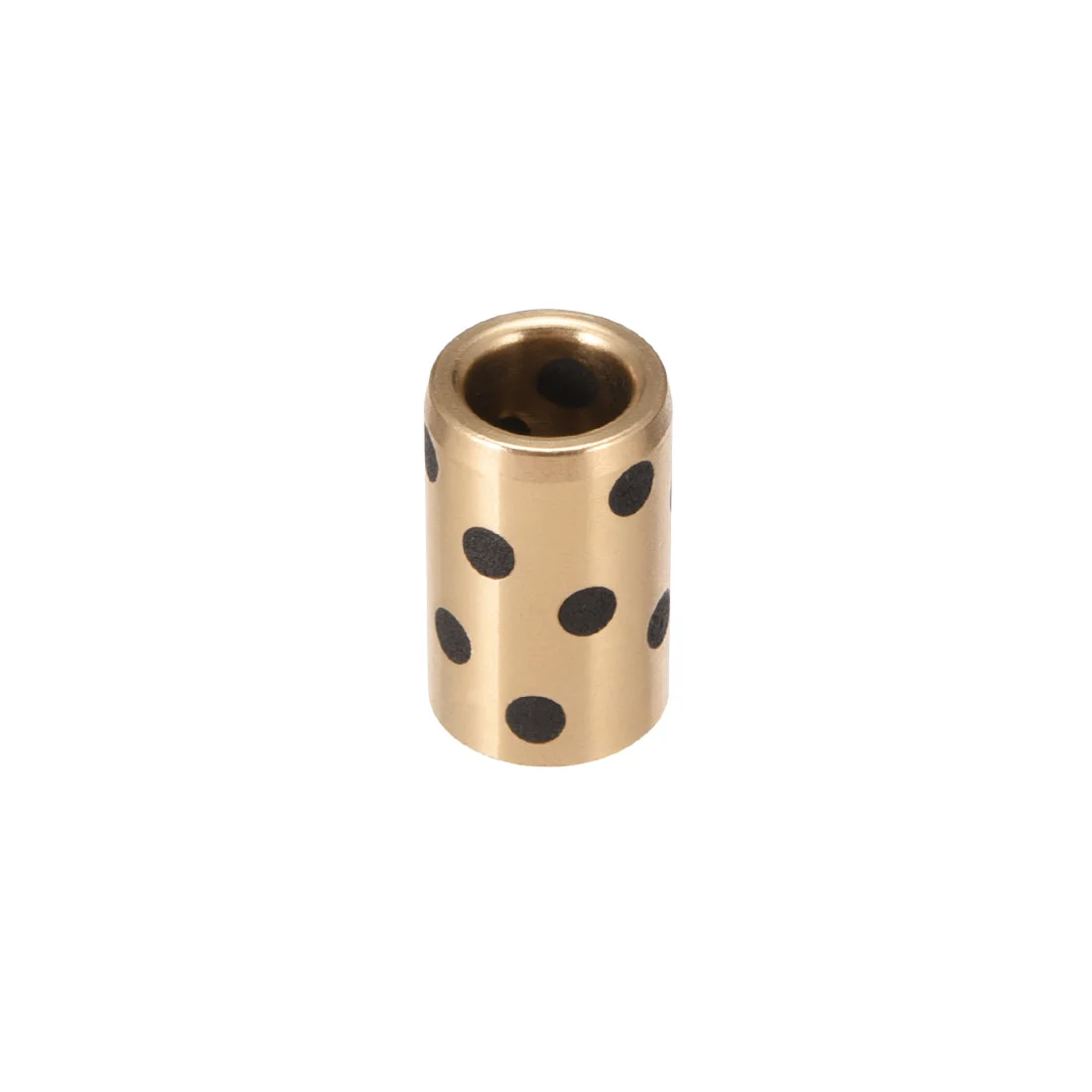

- Plain Bearings are made of cast brass mounted with graphite, which are self-lubricating and don’t need oiling.
- As good frictional property as high sliding , Sleeve Bearings have a small friction factor about 0.12.
- Cast Brass Bushing still allows high sliding during high temperature and corrosive environment.
- Oil-less Sleeve Bearings are most suitable for applications with rotating movements and where self-lubricating properties of the material Lubricating.
- Fixed method: Use vise or punching machine to press in. Use adhesive or locking screws to Anti falling.
Specification:
Material: ZCuZn25Al6Fe3Mn3+Graphite
Bore Diameter:20mm
Outside Diameter26mm
Length: 20mm
Number of Item: 1 Pack
