About this item

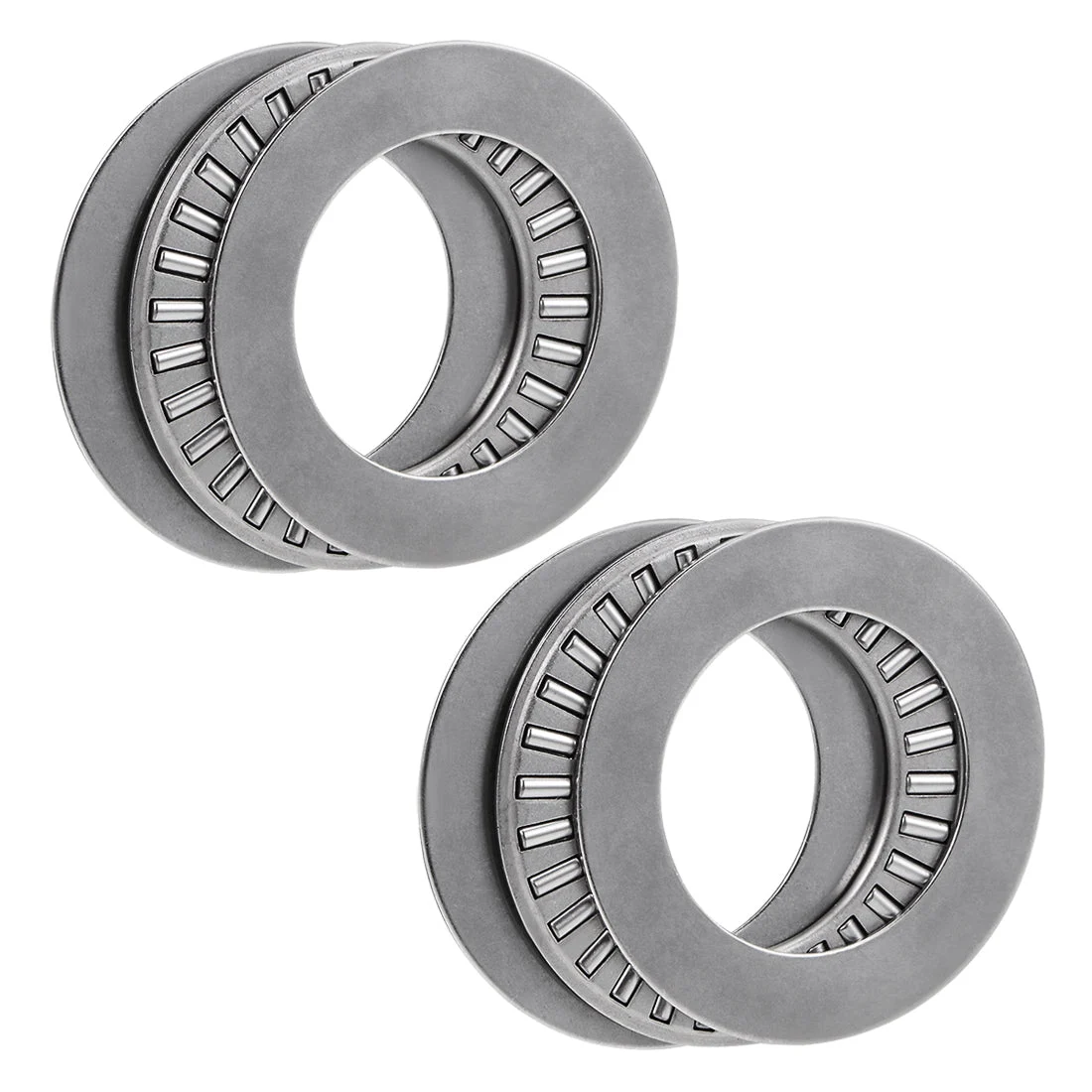

- [MODLE] – Bearing Model: TC411 (I.D.=1/4″, O.D.=11/16″, Thickness=5/64″); Washer Model: TRA411
- [MATERIAL] – Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
- [FEATURES] – Needle Roller Thrust Bearings can accommodate axial loads in one direction only
- [WASHER] – Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
- [CAPABILITY] – 9.16kN Static Load Capacity, 4.11kN Dynamic Load Capacity, 28000RPM Maximum Rotational Speed
Description:
- This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
- Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Specification:
Bearing No.: TC411+2TRA
Needle Roller Material: Chromium Steel (GCr15)
Cage Material: ST14 Steel
Bore Diameter (d): 1/4″ / 6.35mm
Outside Diameter (D): 11/16″ / 17.4625mm
Bearing Thickness (T1): 5/64″ / 1.984mm
Washer Thickness (T2): 0.8mm
Total Thickness: 3.584mm
Dynamic Load Capacity (Cr): 4114N
Static Load Capacity (Cor): 9163N
Maximum Rotational Speed (Oil): 28000rpm
Number of Pack: 2 Pcs
