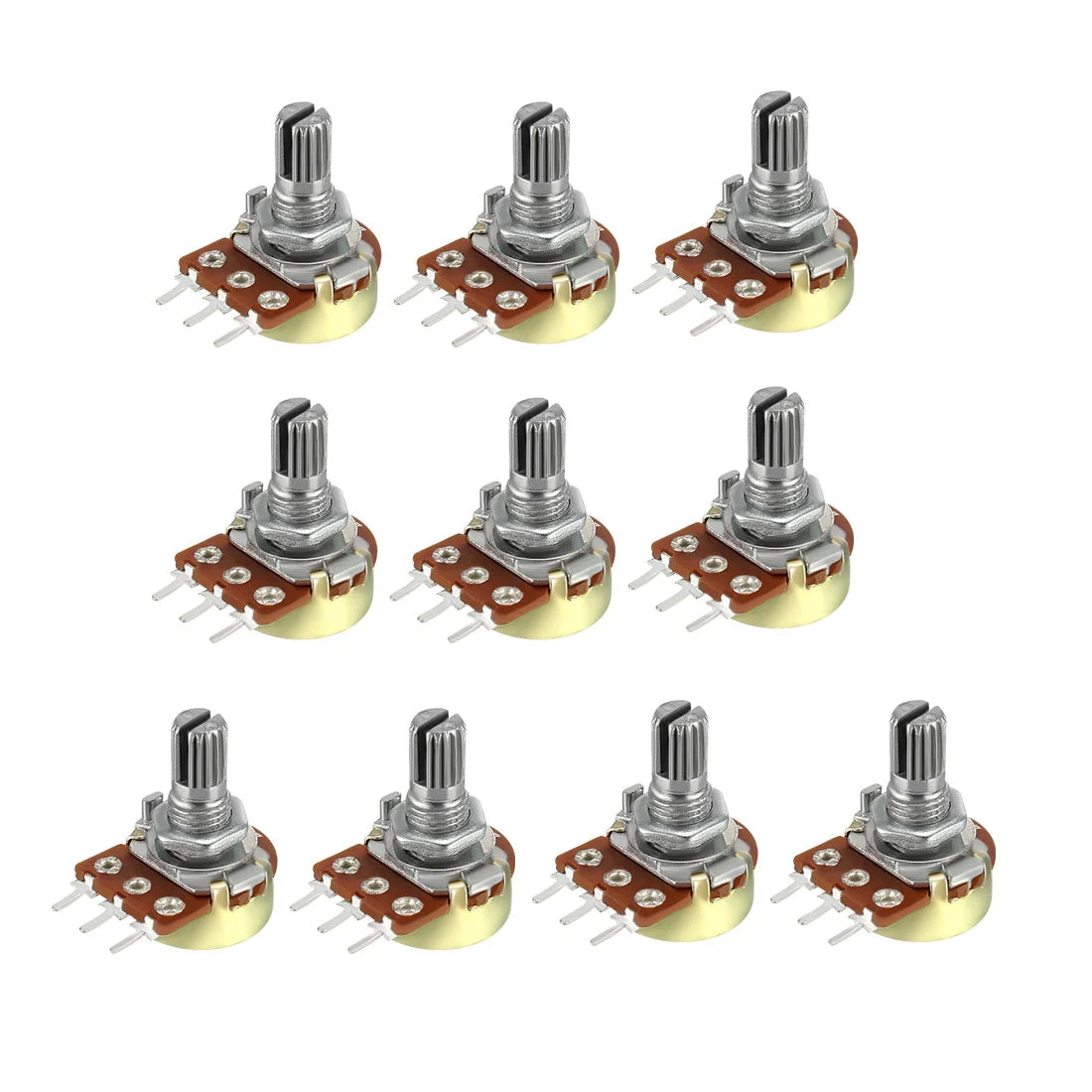

WH148 50K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer 10pcs

About this item

• Model:WH148;Single potentiometer, linear diversify of resistance
• Resistance Value: 50K Ohm Tolerance:+/-20,Thread Dia.: 6.7mm/0.26 inch
• Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
• Long life, soft touch, with soft center positioning
• Top adjustment type and knurled shaft for easy operate in daily use.

• Product Name: Carbon Film Potentiometer
• Model: WH148
• Material:Carbon film Metal
• Resistance Value:50k ohm
• Tolerance:+/-20%
• Turn Number:Single Turn
• Terminals Number:3
• Features:Round Shaft
• Total Size:23.9mm x 16.4mm/0.94 x 0.65 inch (H * D)
• Screw Thread Dia.:6.8mm
• Shaft Diameter:6mm
• Shaft Length(do not include the Screw Thread parts):8.5mm/0.33 inch
• Shaft Total Length:15mm/0.59 inch
• Package Content:10 x Carbon Film Potentiometer
• Features: 50K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
• Top adjustment type and knurled shaft for easy operate in daily use.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
